Datamark Integrated dot peen marking machine MP-80

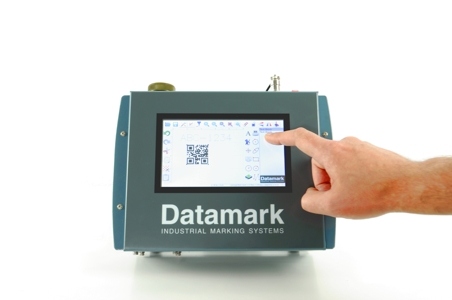

Compact dot peen marking machine equipped with a large generous 80×30 mm marking area. Its powerful and reliable neumatic marking head allows to complete the marking process in very short cycle times. Like all other Datamark marking machines, the MP-80 is equipped with its unique high-speed – non-pivoting – pneumatic marking head with precisse flat movement on both XY axes. This superior technology delivers a higher and homogeneous marking quality into a larger marking area, compared to other machines using inferior pivoting head systems. The advanced touch-screen controller of the system allows easy mechanical  mounting and integration with PLC, PC and other electronic devices into the production line.Technical specifications: Compact design, easy to install in small and hard to reach areas.Powerful pneumatic marking head for fast and precisse marking.Touch screen controller with fully featured marking software.Automatic data marking; serial numbers, shift codes, dates and time.Datamatrix and QR-Codes marking for automatic parts identification.Cost effective, virtually free of maintenanceTechnical specifications: Compact, robust and lightweight design.80 x 30 mm marking window (3.1″ x 1.2″).Flat X-Y axes movement of the marking head (not pivoting).Programmable marking speed up to 12 characteres per second.Programmable marking speed, marking depth and dots density.Capability to mark in all engineering hard metals up to 62HRc (800Hv).6 meters plug&play umbilical cable as standard lengh.Interchangeable marking stylus for standard, fast and deep marking.Weight: 1,9 Kg.Controller: Full 7″ touch screen color display.Text, serial numbers, symbols and imported logos marking.Datamatrix and QR-Code marking.32 different selectable marking fonts; dot-matrix, vector and artistic types.Vector logos marking (HPGL, PLT) imported via USB memory stick.Unlimited marking edited files and logos storage capacity.Automatic marking data programming; serial numbers, time, date, shift codes.Adjustable character height, width, angle position, circunferential position and mirrowed.Marking data entry via barcode readers and barcode label printing features included.Marking data preview and trial run features included.Interface IN/OUT, 4 inputs and 3 output digital signals.RS-232, RS-485 and USB interfaces.110-220V 50-60 Hz. external power supply.Weight: 2.7 Kg. Information on product safety (Manufacturer, Contact)Datamark System SL, Polígono Industrial Ugaldeguren III, Pabellón 13, 48170 Zamudio, SPAIN, +34 944 758 269, , www.datamark-systems.com
