DOCK ANGEL Loading Dock foldable Protection Barrier

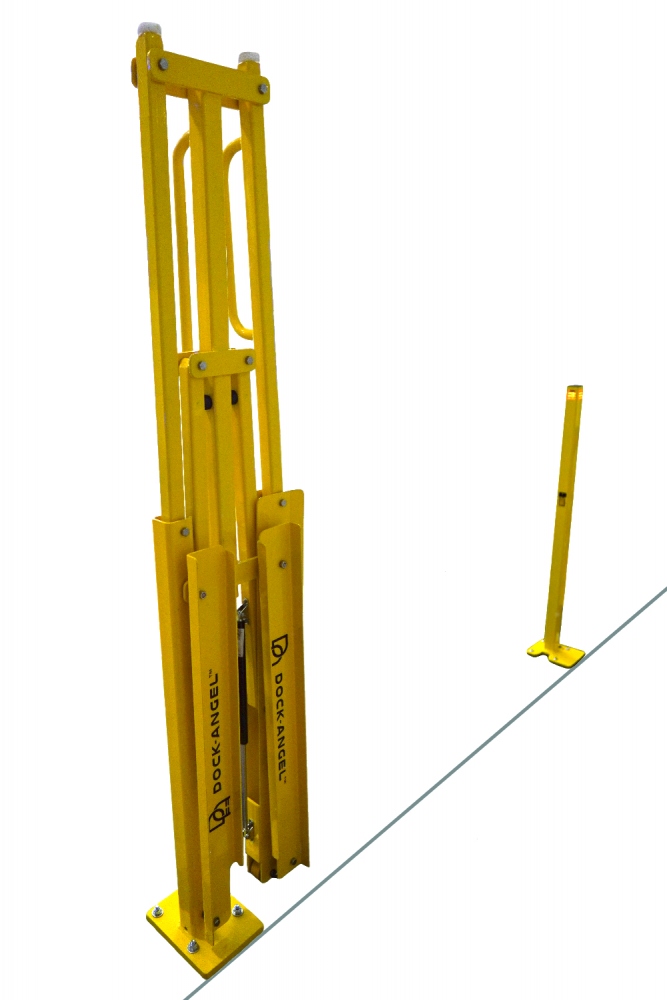

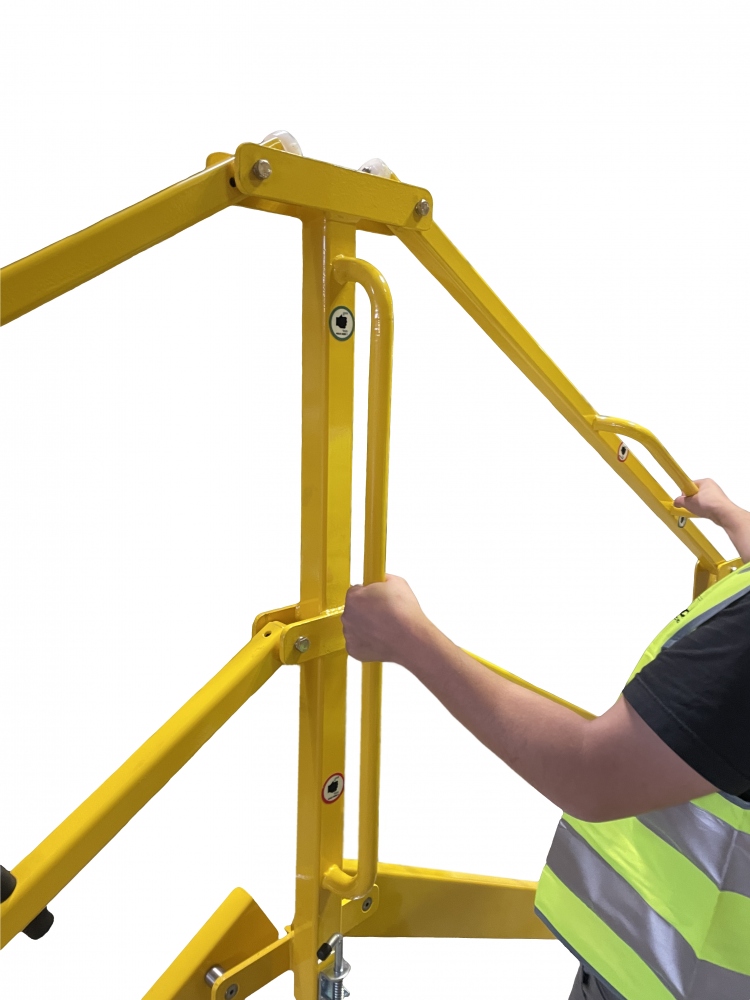

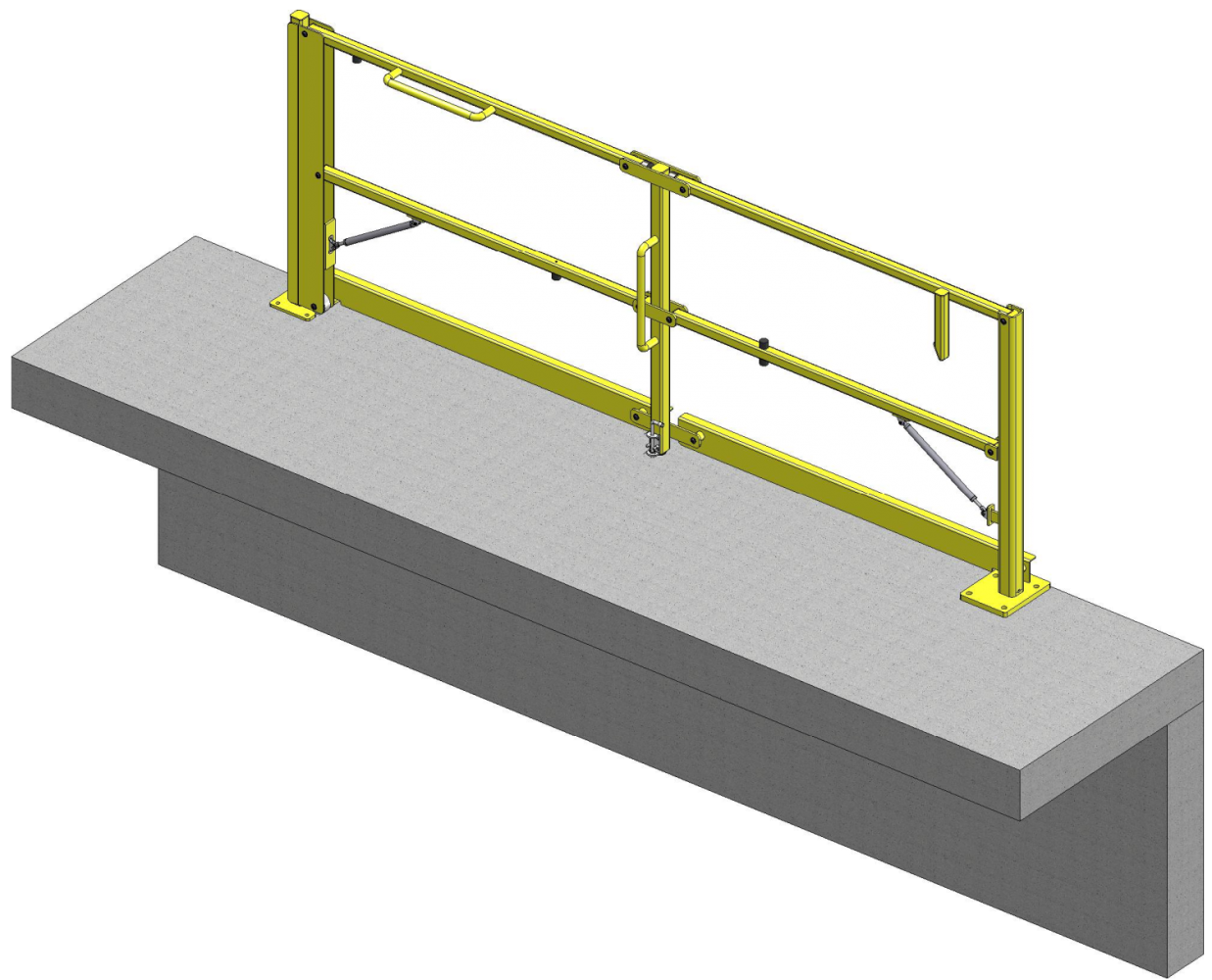

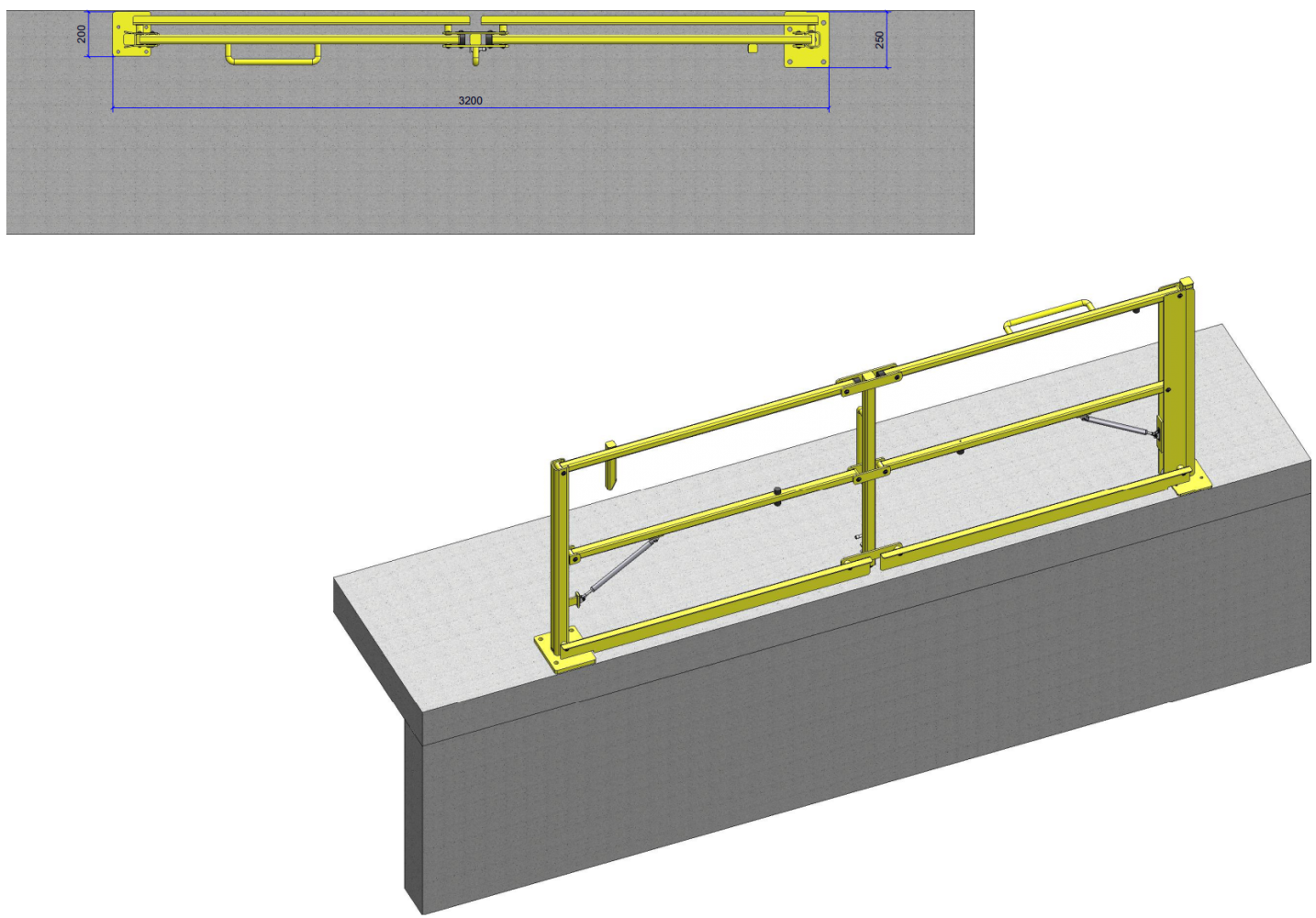

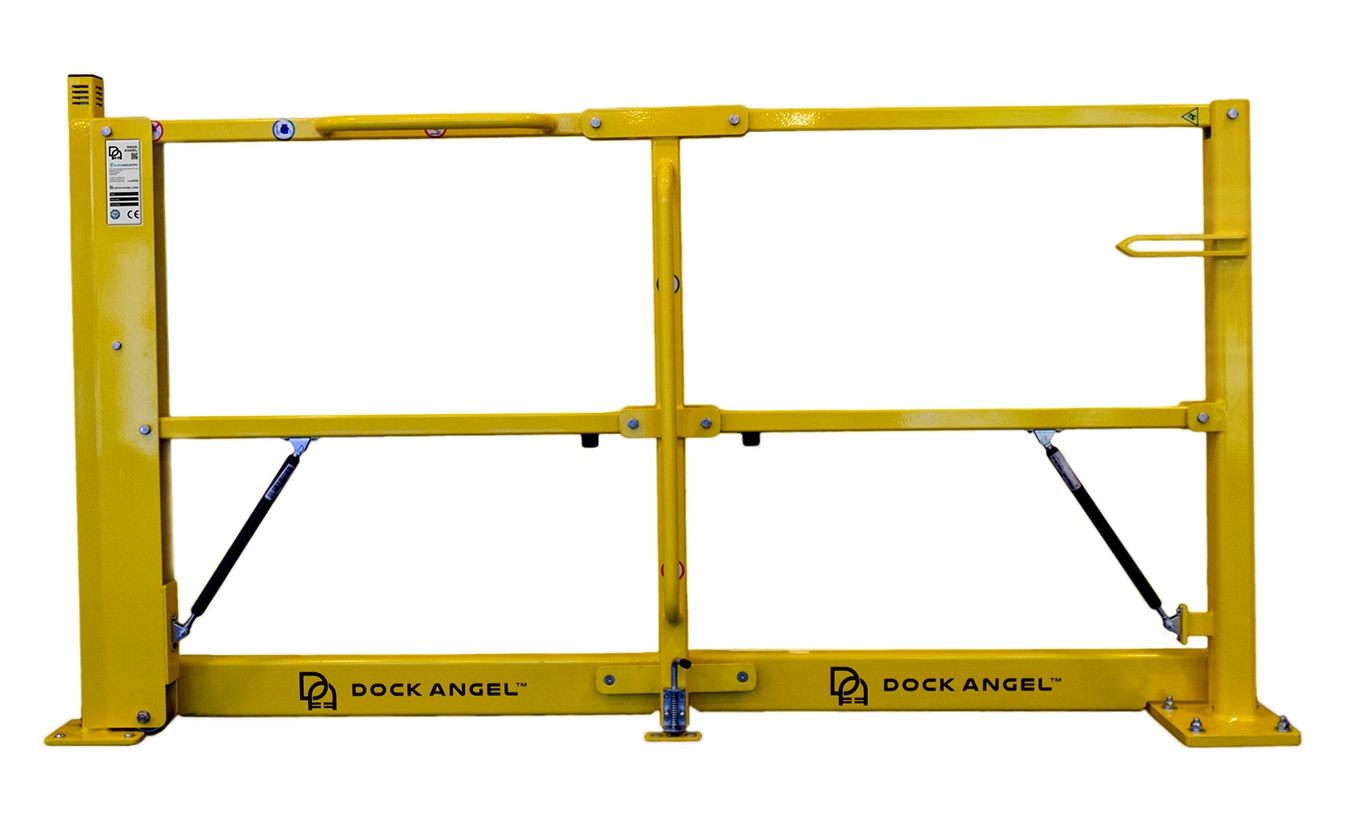

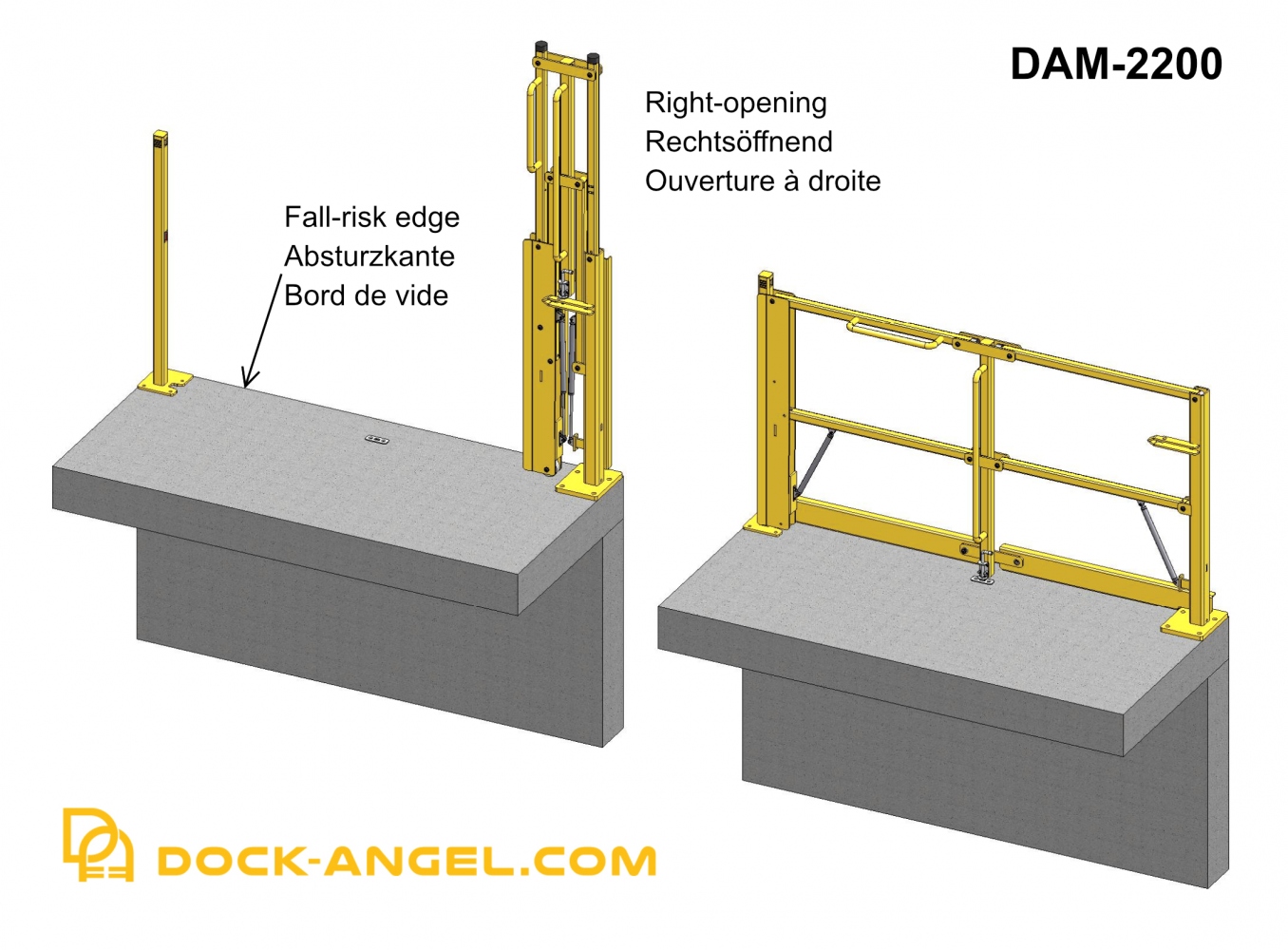

Side folding Safety Barrier DOCK ANGEL for loading dock.DOCK ANGEL side folding Safety Barriers are primarily used to prevent people or forklifts from falling off the loading dock, which causes serious accidents and injuries.However, thanks to the completely standardized design, this product can also be used for other applications. Safety Barrier (Guardrail) with gas springs, top rail, mid rail and toe board (100 mm in height).Robust construction for industrial use.State-of-the-art conception and quality.Pivot points made of Stainless Steel and maintenance-free igus® self-lubricating plain bearings.Double angled toe board – highly stable and no risk of injury – suitable for working environments where safety footwear is not mandatory.Innovative locking mechanism with double function (with intermediate articulation from a width of 2,000 mm).Handles with 27 mm diameter, comfortable to use.Material thickness of the steel profiles: 4 mm.Made in SouthWest Germany.Certified by TÜV SÜD Product Service GmbH (production monitored, safety tested)..The product DOCK ANGEL has an identification plate with a serial number. Spare parts are available for a minimum period of 10 years,also in the event of subsequent modification of the product by the manufacturer.Dimensions DOCK ANGEL DAM-3200 (Effective width 2.700 mm):    Overall width: 3.200mmEffective width: 2.700 mmOverall depth: 250 mmOverall height: 2.550 mmHandrail height: 1.100 mmDimensions DOCK ANGEL DAM-2800 (Effective width 2.300 mm):    Overall width: 2.800 mmEffective width: 2.300 mmOverall depth: 250 mmOverall height: 2.350 mmHandrail height: 1.100 mmMaterial : high quality Steel. Stainless steel version 304L on request.Surface finish : hot-dip galvanized and/or powder coating. The hot-dip galvanized coating last up to 50 years in rural environments and up to 25 years in more corrosive environments, such as coastal regions.Color : traffic yellow RAL 1023 (standard) or every other RAL color if powder coated, or grey (hot-dip galvanized).Optional warning light: red LED light with limit switch, illuminated when open (360° visibility). IP65, 220-230V (supplied with 5 meter power cable without plug). Fully integrated in the recepting pillar.
