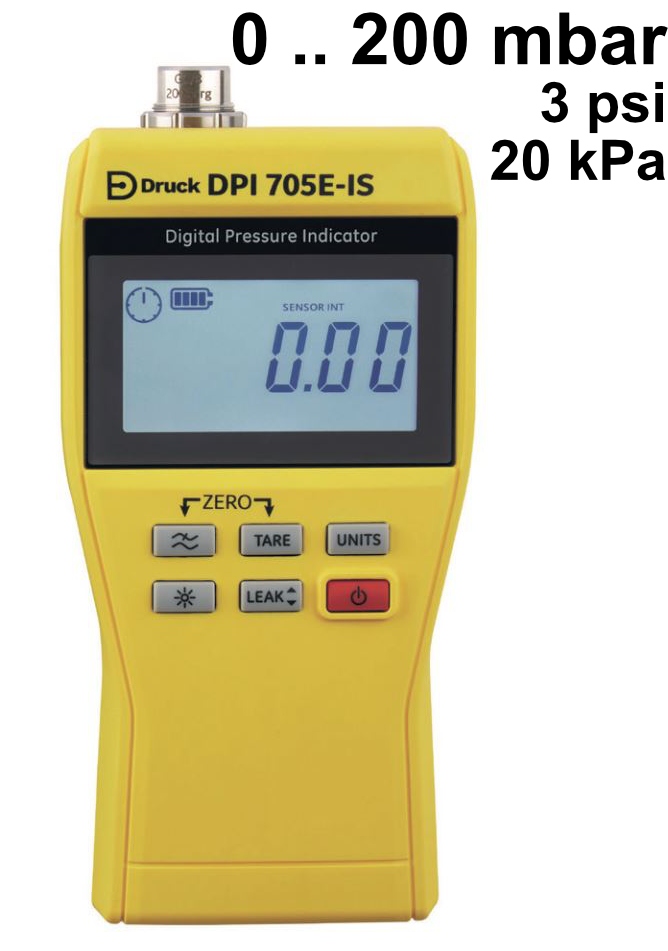

DRUCK DPI 705EIS Digital pressure gauge with internal sensor 0-200mbar

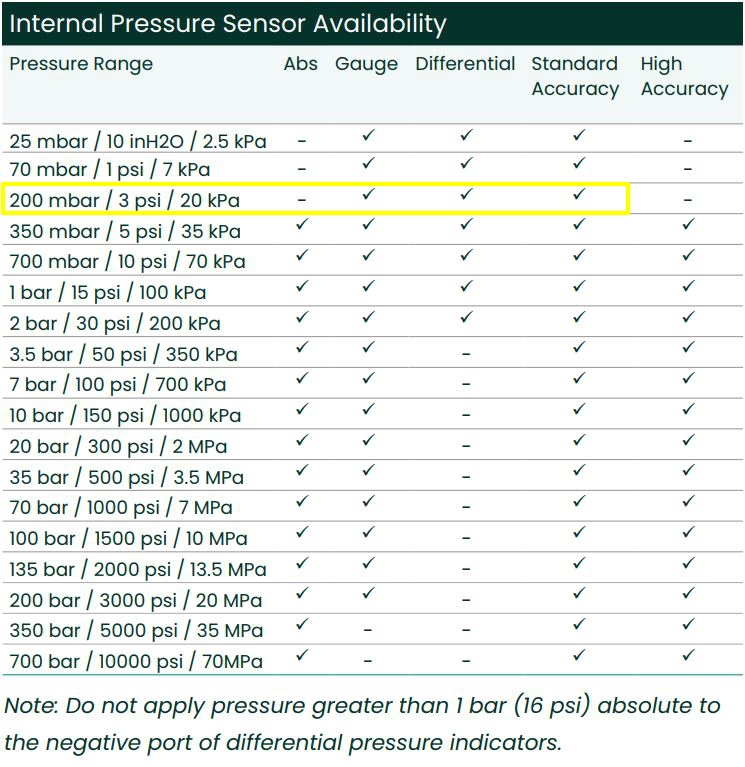

The Druck DPI 705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements.Compact and robust, the DPI 705E Series is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.Pressure range 0 – 200 mbar with standard accuracyWith ATEX approval for hazardous areasHighlightsOn request available with 48 pressure ranges from ±25 mbar to 1,400 bar (±1.69 psi to 20,000 psi / 2.5 KPa to 140 MPa) Total 1 year uncertainty down to 0.05% full scale (FS) over temperature range of -10°C to +50°CIntegral calibration record with calibration due count-down displayRugged, handheld design with backlit high-contrast displayLeak test, tare, maximum/minimum and filterHazardous Area (Intrinsically safe) version available (DPI 705E-IS)Optional remote plug and play pressure and Resistance Temperature Detector (RTD) sensorsOptional pneumatic and hydraulic hand pumpsPower on and use. No warm up time required.19 pressure measurement units (See below)1, 3 or 5 minute leak testImpact resistant, sealed to IP54Large digit high-contrast LCD with backlightOptional carrying case with belt loopOptional magnetic/loop hanging strapLong battery lifeIntegral desk stand and hangerApprovals for hazardous areasATEX, IECEx, NEPSi, ECASExTechnical specificationsAvailable versions() g = gauge Do not apply pressure greater than 1 bar (16 psi) absolute to the negative port of differential pressure indicatorsl = differentialPressure ranges0 – 200 mbar (3psia)(Ranges 25 mbar through to 1400 bar on request)Accuracy0.1% FS accuracy (standard)Pressure Unitsmbar, bar, Pa, hPa, Pa, MPa, psi , lb/ft2, kgf/cm2, kgf/m2, mmHg(0°C), mHg(0°C), inHg 0, mmH2O, cmH2O, mH2O, inH2O (4°C, 20°C), ftH2O (4°C, 20°C)Calibration Unitsmbar, bar, psi, kPa, mPa, hPa, Kgh/cm2Leak testUser defined 1, 3 or 5 minute leak testZeroZero pressure correction (gauge/differential sensors)Tare0 to 100% FS zero offset capabilityFilter10 reading rolling average for unstable pressuresAlarmUser adjustableMedia compatibilityInternal sensor: stainless steel, except positive differential non-corrosive fluid and negative differential dry gasAmbient Temperature°C and °F reading of local condition ±1.5°C (±3°F)Display16mm LCD with ±99999 readoutPower ManagementLow battery indicator and selectable ‘auto off’Battery4 x AA Alkaline/NiCd/NiMH cellsPower efficient design, can be used for 8 Hours per day, 6 days per week for 1 Year using a single set of batteriesStorage temperature-10°C to 50°C (15°F to 120°F)Safety ConformanceCE marked, RCMEnvironmentalIP54 (NEMA 12)Dimensions200 x 95 x 43 mmWeight563 g  Information on product safety (Manufacturer, Contact)ICS Schneider Messtechnik GmbH, Briesestrasse 59, 16562 Hohen Neuendorf OT Bergfelde, GERMANY, +49 3303 5040-66, , www.ics-schneider.de
