Fridavo No.123 – Steel, nickel – Spiral springswing door hinges, double-acting – Model M

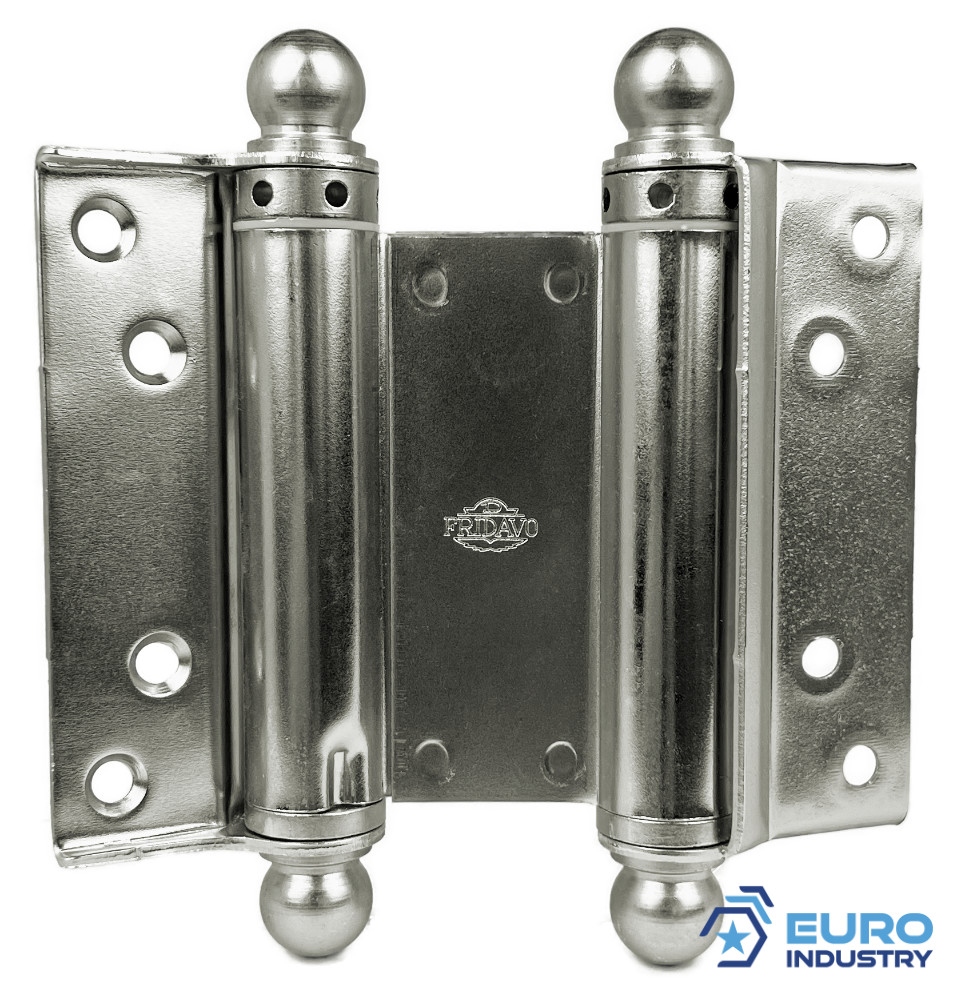

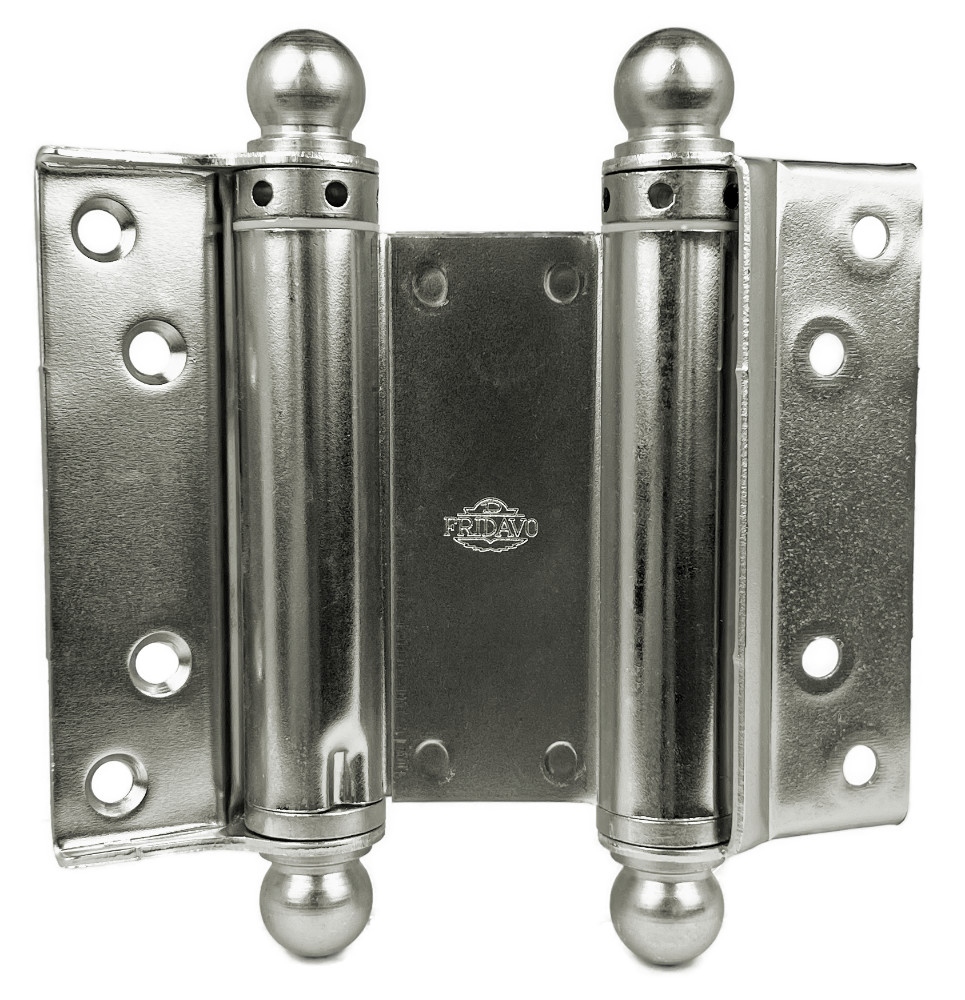

Fridavo steel, nickel – spiral spring swing door hingesWith decoration knobPackaging unit: 1 pairDouble-actingModel MSwing door hinge, SizeNr.282930333639424548Joint legthmm5075100125150175200250300Calculated on:         Door widthmm6106107357357358609859851235Door heightmm117018001900200025002500260028003000Door thiknessmm18-2518 – 2525 – 3030 – 3535 – 4040 – 4545 – 5050 – 6060 – 75max. Door weigthkg10152227405570100145Size: 28 (for Saloon-doors)Length of hinge in mm: 50calculated on:Door width in mm: 610Door height in mm: 1170Door thickness in mm: 18-25Door weight in Kg: 10Size: 29Length of hinge in mm: 75calculated on:Door width in mm: 610Door height in mm: 1800Door thickness in mm: 18-25Door weight in Kg: 15Size: 30Length of hinge in mm: 100calculated on:Door width in mm: 735Door height in mm: 1800Door thickness in mm: 25-30Door weight in Kg: 22Size: 33Length of hinge in mm: 125calculated on:Door width in mm: 735Door height in mm: 2000Door thickness in mm: 30-35Door weight in Kg: 27Size: 36Length of hinge in mm: 150calculated on:Door width in mm: 735Door height in mm: 2500Door thickness in mm: 34-40Door weight in Kg: 40Size: 39Length of hinge in mm: 175calculated on:Door width in mm: 860Door height in mm: 2500Door thickness in mm: 40-45Door weight in Kg: 55Size: 42Length of hinge in mm: 200calculated on:Door width in mm: 985Door height in mm: 2600Door thickness in mm: 45-50Door weight in Kg: 70Size: 45Length of hinge in mm: 250calculated on:Door width in mm: 985Door height in mm: 2800Door thickness in mm: 50-60Door weight in Kg: 100Size: 48Length of hinge in mm: 300calculated on:Door width in mm: 1235Door height in mm: 3000Door thickness in mm: 60-75Door weight in Kg: 145 Information on product safety (Manufacturer, Contact)Fritz Dannert GmbH & Co. KG, Rosendahler Strasse 141, 58285 Gevelsberg, GERMANY, +49 2332 91091-10, , www.fridavo.de
