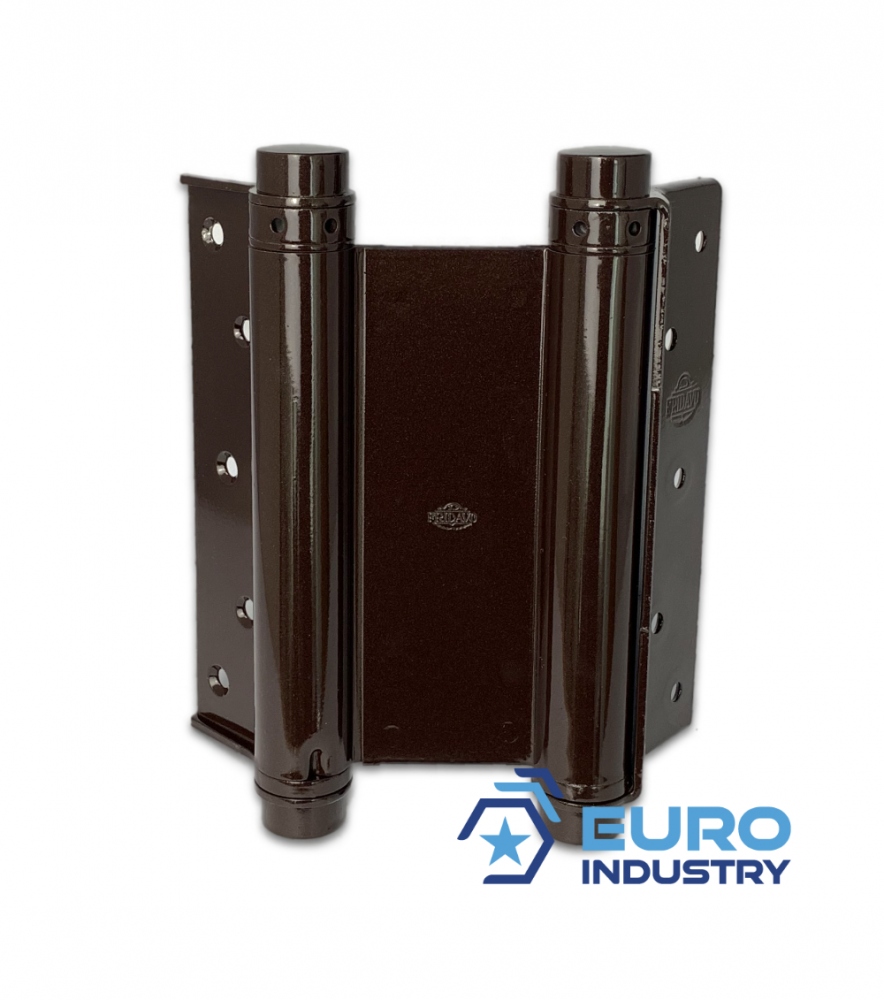

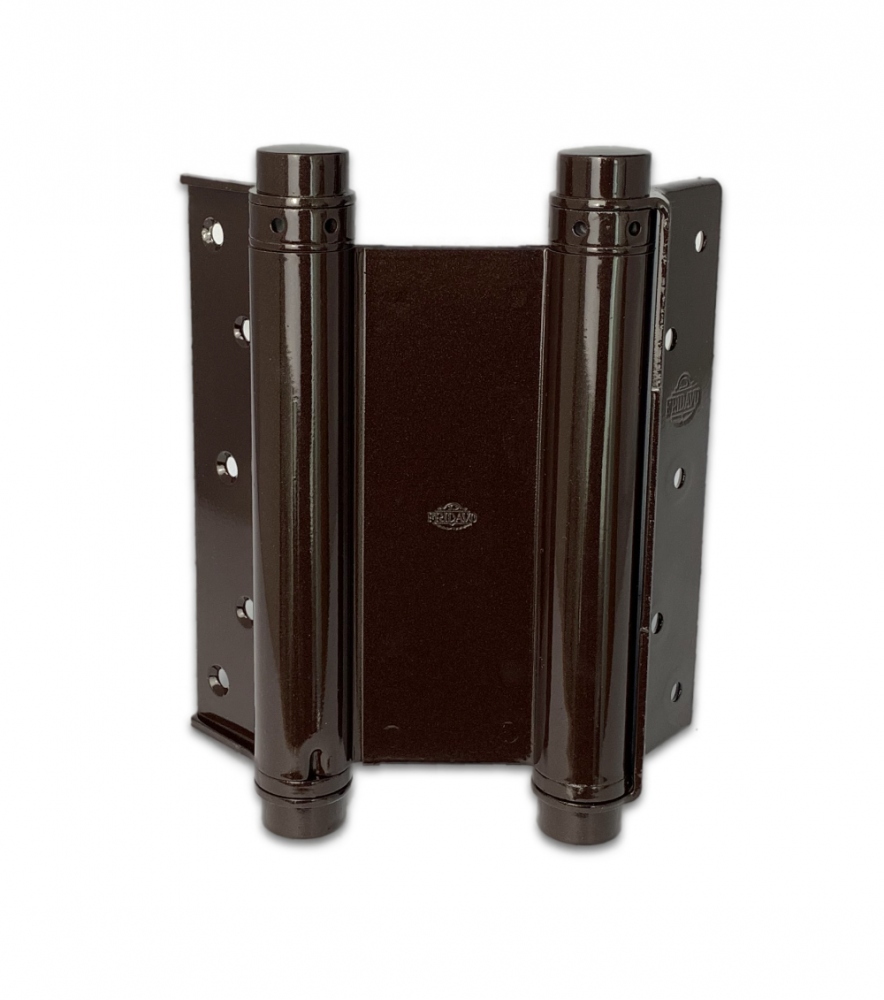

Fridavo No.125B Spiral springswing door hinges, double-acting

Fridavo steel, soft primed and painted toyota-brown – spiral spring swing door hingesPackaging unit: 1 pairDouble-acting, Sleeve made of a piece of high quality SM-steel rolledModel MSpiral spring made ​​of special spring wireWhen assembling the tapes must be ensured that the trade are placed vertically above one anotherThe spring of the upper band to be more excited because this band has to exert a greater forceProduct may vary from pictureSwing door hinge, SizeNr.282930333639424548Joint legthmm5075100125150175200250300Calculated on:         Door widthmm6106107357357358609859851235Door heightmm117018001900200025002500260028003000Door thiknessmm18-2518 – 2525 – 3030 – 3535 – 4040 – 4545 – 5050 – 6060 – 75max. Door weigthkg10152227405570100145Size: 28 (for Saloon-doors)Length of hinge in mm: 50calculated on:Door width in mm: 610Door height in mm: 1170Door thickness in mm: 18-25Door weight in Kg: 10Size: 29Length of hinge in mm: 75calculated on:Door width in mm: 610Door height in mm: 1800Door thickness in mm: 18-25Door weight in Kg: 15Size: 30Length of hinge in mm: 100calculated on:Door width in mm: 735Door height in mm: 1800Door thickness in mm: 25-30Door weight in Kg: 22Size: 33Length of hinge in mm: 125calculated on:Door width in mm: 735Door height in mm: 2000Door thickness in mm: 30-35Door weight in Kg: 27Size: 36Length of hinge in mm: 150calculated on:Door width in mm: 735Door height in mm: 2500Door thickness in mm: 34-40Door weight in Kg: 40Size: 39Length of hinge in mm: 175calculated on:Door width in mm: 860Door height in mm: 2500Door thickness in mm: 40-45Door weight in Kg: 55Size: 42Length of hinge in mm: 200calculated on:Door width in mm: 985Door height in mm: 2600Door thickness in mm: 45-50Door weight in Kg: 70Size: 45Length of hinge in mm: 250calculated on:Door width in mm: 985Door height in mm: 2800Door thickness in mm: 50-60Door weight in Kg: 100Size: 48Length of hinge in mm: 300calculated on:Door width in mm: 1235Door height in mm: 3000Door thickness in mm: 60-75Door weight in Kg: 145 Information on product safety (Manufacturer, Contact)Fritz Dannert GmbH & Co. KG, Rosendahler Strasse 141, 58285 Gevelsberg, GERMANY, +49 2332 91091-10, , www.fridavo.de
