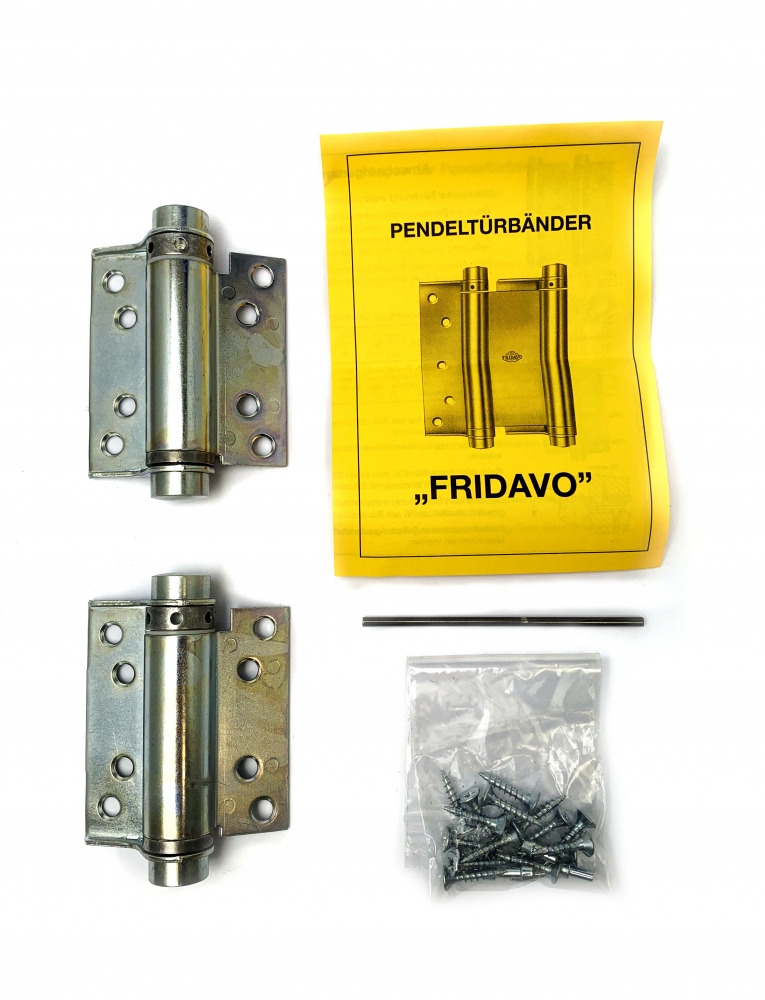

Fridavo No.136b – Steel, galvanized – Spiral spring hinge, Single direction – Model M

Fridavo steel, galvanized – spiral spring hingePackaging unit: 1 pairSingle directionModel MSpiral spring made ​​of special spring wireWhen assembling the tapes must be ensured that the trade are placed vertically above one anotherProduct may vary from pictureSpring hinge,SizeNr.015913172125Joint lengthmm75100125150175200250300Calculated on:        Door widthmm6107357357358609859851235Door hightmm18001900200025002500260028003000Door thicknessmm18 – 2525 – 3030 – 3535 – 4040 – 4545 – 5050 – 6060 – 75max. Door weigthkg152227405570100145Size: 0Length of hinge in mm: 75calculated on:Door width in mm: 610Door height in mm: 1800Door thickness in mm: 18-25Door weight in Kg: 15Size: 1Length of hinge in mm: 100calculated on:Door width in mm: 735Door height in mm: 1800Door thickness in mm: 25-30Door weight in Kg: 22Size: 5Length of hinge in mm: 125calculated on:Door width in mm: 735Door height in mm: 2000Door thickness in mm: 30-35Door weight in Kg: 27Size: 9Length of hinge in mm: 150calculated on:Door width in mm: 735Door height in mm: 2500Door thickness in mm: 34-40Door weight in Kg: 40Size: 13Length of hinge in mm: 175calculated on:Door width in mm: 860Door height in mm: 2500Door thickness in mm: 40-45Door weight in Kg: 55Size: 17Length of hinge in mm: 200calculated on:Door width in mm: 985Door height in mm: 2600Door thickness in mm: 45-50Door weight in Kg: 70Size: 21Length of hinge in mm: 250calculated on:Door width in mm: 985Door height in mm: 2800Door thickness in mm: 50-60Door weight in Kg: 100Size: 25Length of hinge in mm: 300calculated on:Door width in mm: 1235Door height in mm: 3000Door thickness in mm: 60-75Door weight in Kg: 145 Information on product safety (Manufacturer, Contact)Fritz Dannert GmbH & Co. KG, Rosendahler Strasse 141, 58285 Gevelsberg, GERMANY, +49 2332 91091-10, , www.fridavo.de
