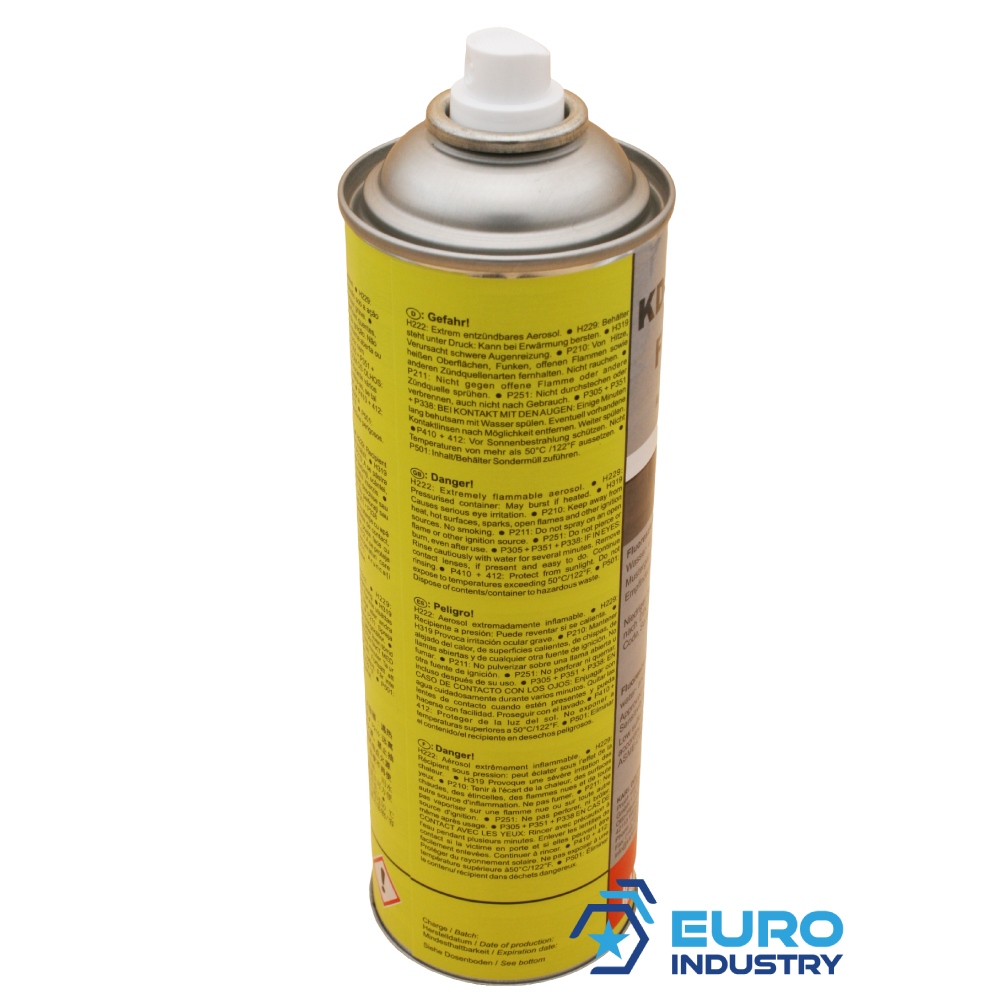

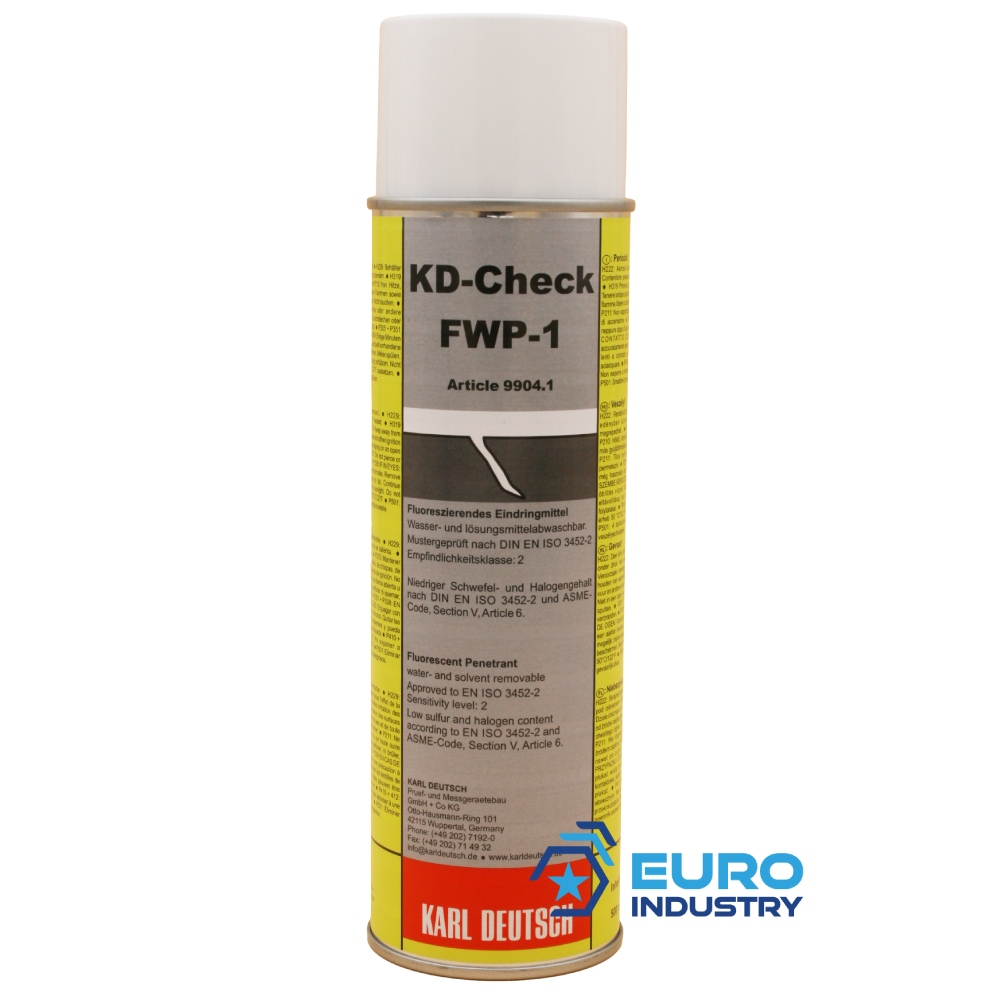

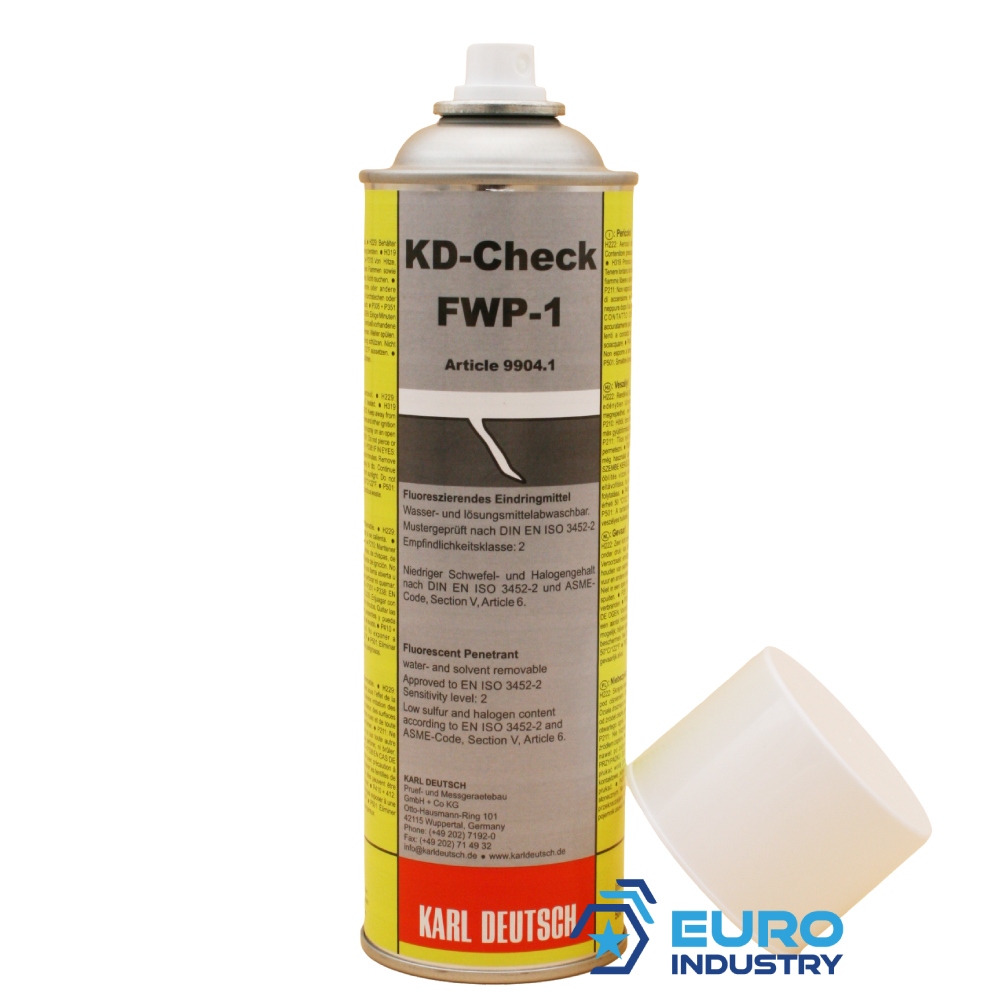

KD-Check FWP-1 Fluorescent Penetrant for finest cracks 500ml spray

Karl Deutsch KD-Check FWP-1 Penetrant is a highly sensitive testing aerosol spray for the finest cracks in critical components (sensitivity class 2).ApplicationsMainly used with serial testing of critical components, for example in the aerospace and automotive industryWhen used in stationary systems, a large number of components can be checked reproducibly for finest cracks within a short period of timeIn combination with dry developers, which are applied by spraying or electrostatically, the sensitivity during testing is increased even furtherCharacteristicsOil-based Fluorescent PenetrantWater-washable and solvent-removableSuitable for ferrous and nonferrous metals (Check suitability for plastics before application)Reduced test agent consumption due to low viscosity and optimum dripping propertiesExcellent wetting properties, especially on smooth surfacesVery good wash-off properties on rough surfacesLow background fluorescenceHigh test reliability due to strong contrast formationLow sulfur and halogen content according to DIN EN ISO 3452-2 and ASME Code, Section V, Article 6Can be used in a temperature range from +10 °C to +50 °CSample tested according to DIN EN ISO 3452-2Size: 500mlPackaging type: aerosol sprayApplication notesClean parts thoroughly. Ensure parts are free from grease, oil and other pollutants. Defects must be open to the surface. Dry the parts after cleaning. Recommended cleaner: KD-Check PR-1 (Ref. ) or PR-2 (Art. No. 9907).Apply Penetrant KD-Check FWP-1 to the clean and dry surface and allow to dwell for 5 – 10 minutes.Remove the excess Penetrant KD-Check FWP-1 from the surface under Black-Light-control, eithera) by rinsing it off with water orb) by wiping it off with a clean, lint-free cloth, barely dampened with cleaner KD-Check PR-1.Dry the surface.Apply a wafer-thin film of Developer KD-Check SD-1 (Ref. ) under Black-Light-control to thedry surface from a distance of about 20 cm. Too much developer may hide fine defects! Soon defects become visible as yellow-green fluorescent lines and development is complete after 5 – 10 minutes. Alternative KD-Ckeck DD-1 dry developer (Art.-No. 9908) may be used.Technical Specifications Karl Deutsch Manufacturer Nr. 9904.1 Sensitivity (DIN EN ISO 3452-2) 2 (medium sensitivity) Density 20°C (DIN 51 757) 0,9 g/cm³ Flash point (DIN 51 755) 93 °C Viscosity, 20°C (EN ISO 3104) 10,6 mm²/s Corrosive ingredients (DIN EN ISO 3452) Halogene (F + Cl): < 20 ppm Sulfur: < 10 ppm Min. Storage Time 3 years (at room temperature)AttentionDangerous substances and/or dangerous goods, see safety data sheet.Not available in all countries.Express delivery not possible.Hazard Warnings (CLP)Signal word: DangerHazard Statements (H-phrases)H304: May be fatal if swallowed and enters airways.H319: Causes serious eye irritation.Safety Statements (P-phrases)Prevention:P280: Wear protective gloves/protective clothing/eye protection/face protection/hearing protection/...Response:P301+P310: IF SWALLOWED: Immediately call a POISON CENTER/doctor/...P305+P351+P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.P331: Do NOT induce vomiting.P337+P313: If eye irritation persists: Get medical advice/attention.Disposal:P501: Dispose of contents/container to hazardous waste.Other HazardsNo data available×Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,  Information on product safety (Manufacturer, Contact)KARL DEUTSCH Prüf- und Messgerätebau GmbH + Co KG, Otto-Hausmann-Ring 101, 42115 Wuppertal, GERMANY, +49 202 7192 0, , www.karldeutsch.de
