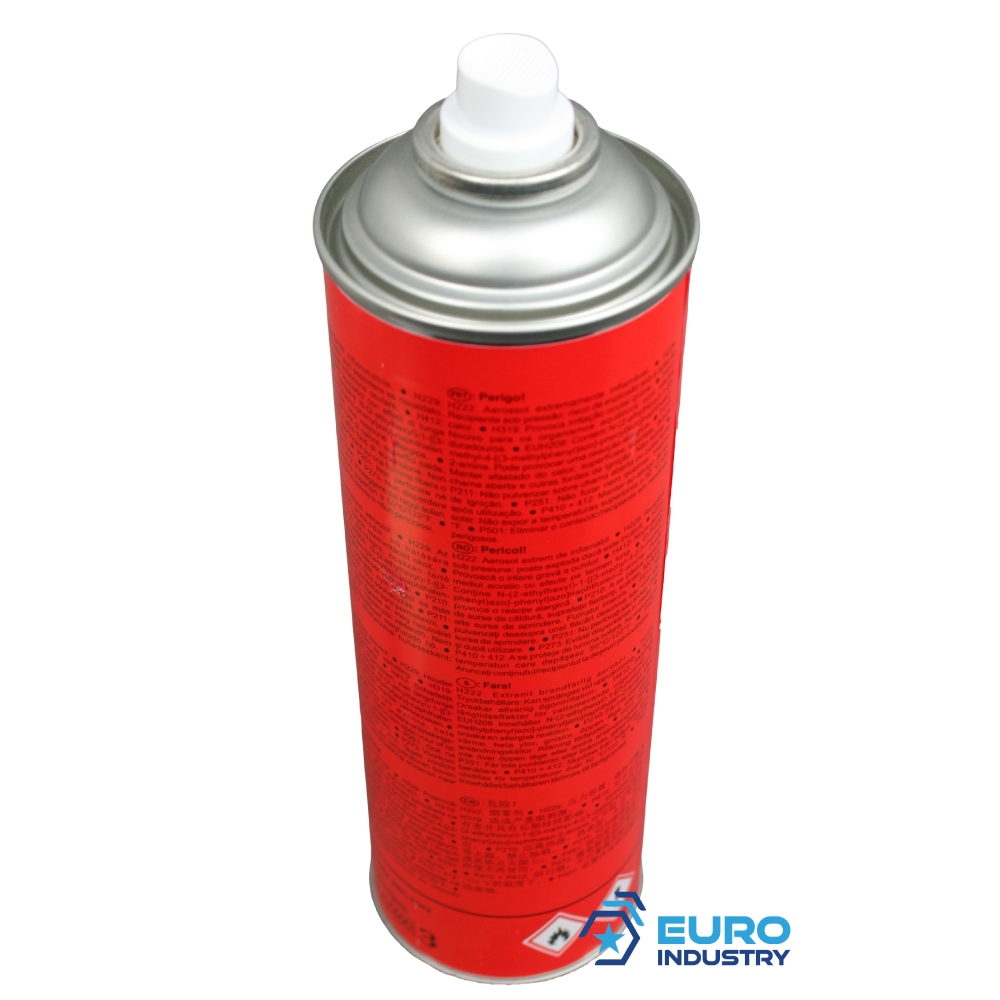

KD-CHECK RDP-1 Red dye penetrant for crack detection 500ml spray

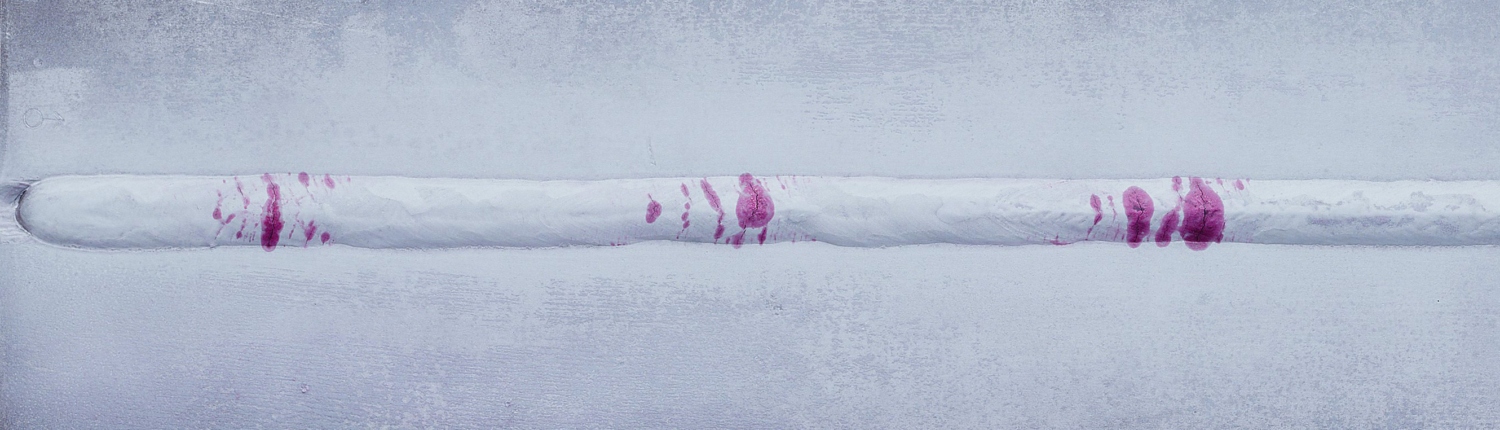

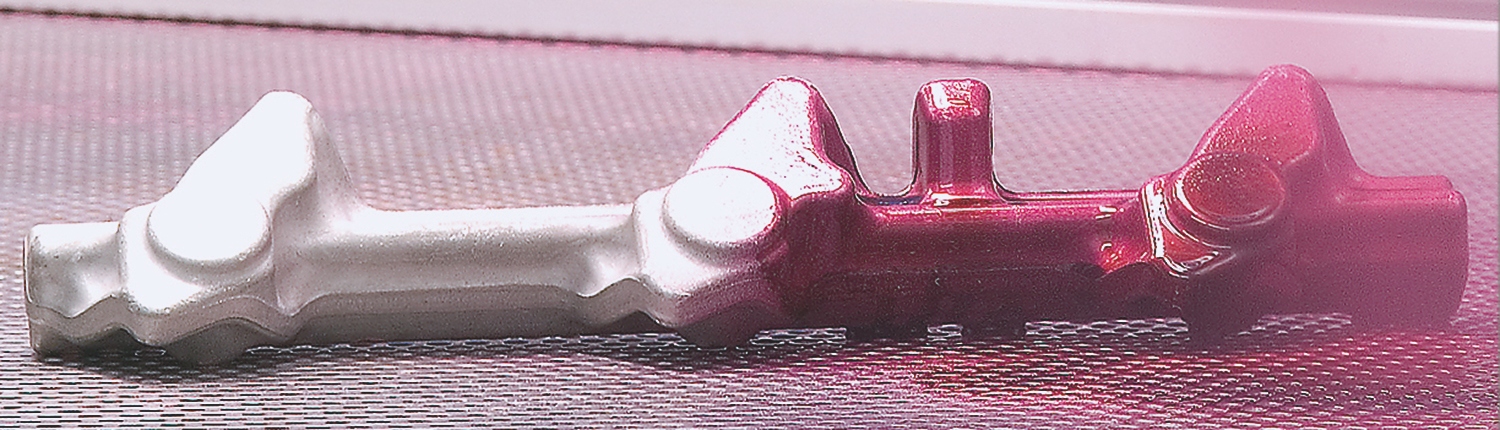

Karl Deutsch KD-CHECK RDP-1 red crack detection spray allows non-destructive testing for surface cracks and pores, using the dye penetration test method.AdvantagesEfficient testing with minimum effort: Only one spray of penetrant, cleaner () and developer () are required for successful testing.Reduced consumption: Low viscosity and optimum dripping properties lead to reduced test agent consumptionEasy evaluation: Evaluation is carried out in normal daylight or under daylight lampsHigh test reliability: Strong contrast formation, sample tested according to DIN EN ISO 3452-2 and 3452-6, approved according to AREVA NP TLV 9017ApplicationParticularly suitable for construction sites, repairs, spot checks and series testingSuitable for almost all metallic and non-metallic material surfaces such as steel, aluminum, brass or plastics (Suitability for plastics must be checked beforehand)The red dye penetrant seeps into cracks by capillary action. The processing time (5 – 10 minutes) depends on the crack / pore geometry.CharacteristicsRed oil-based dye penetrant ensures high efficiencyCrack detection system is approved according to DIN EN ISO 3452 and meets the requirements of TRGS 614.No additional auxiliaries required for the dye penetrant processRed dye penetrant effectively penetrates the crack by capillary actionExposure time (5 – 10 minutes) varies depending on crack / pore geometrySensitivity class 2Water and solvent washable for easy cleaningEasy to wash off for clean resultsExcellent wetting properties, especially on smooth surfacesStrong contrast formationLow sulfur and halogen content according to DIN EN ISO 3452-2 and ASME Code, Section V, Article 6Can be used in a temperature range from -30 °C to +50 °CQuality tested: Sample tested according to DIN EN ISO 3452-2 and 3452-6, approved according to AREVA NP TLV 9017.Size: 500mlPackaging type: aerosol sprayHazard Warnings (CLP)Signal word: DangerHazard Statements (H-phrases)H304: May be fatal if swallowed and enters airways.H317: May cause an allergic skin reaction.H319: Causes serious eye irritation.H412: Harmful to aquatic life with long-lasting effects.Precautionary Statements (P-phrases)Prevention:P273: Avoid release to the environment.P280: Wear protective gloves/protective clothing/eye protection/face protection/hearing protection/…Response:P301 + P310: IF SWALLOWED: Immediately call a POISON CENTER/doctor/…P302 + P352: IF ON SKIN: Wash with plenty of water/soap.P331: Do NOT induce vomiting.Disposal:P501: Dispose of contents/container to hazardous waste.Other HazardsNo data available.×Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,  Information on product safety (Manufacturer, Contact)KARL DEUTSCH Prüf- und Messgerätebau GmbH + Co KG, Otto-Hausmann-Ring 101, 42115 Wuppertal, GERMANY, +49 202 7192 0, , www.karldeutsch.de
