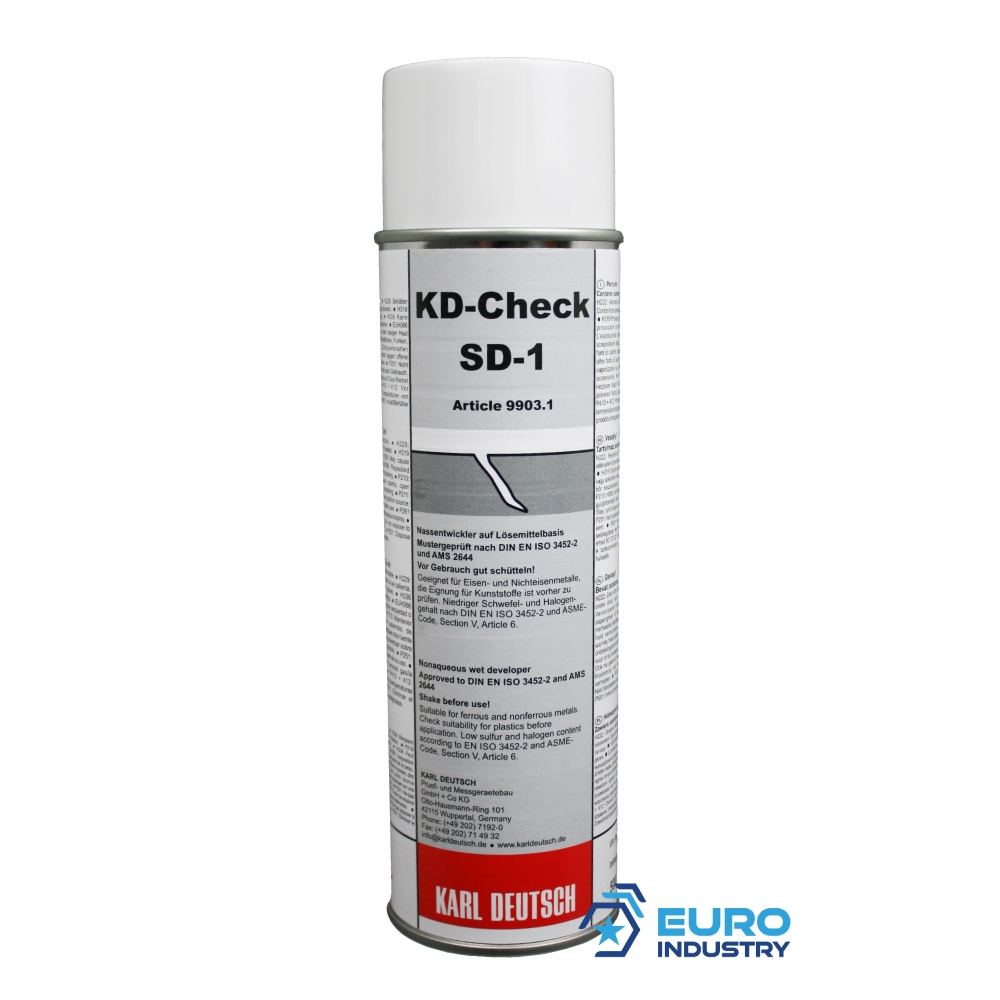

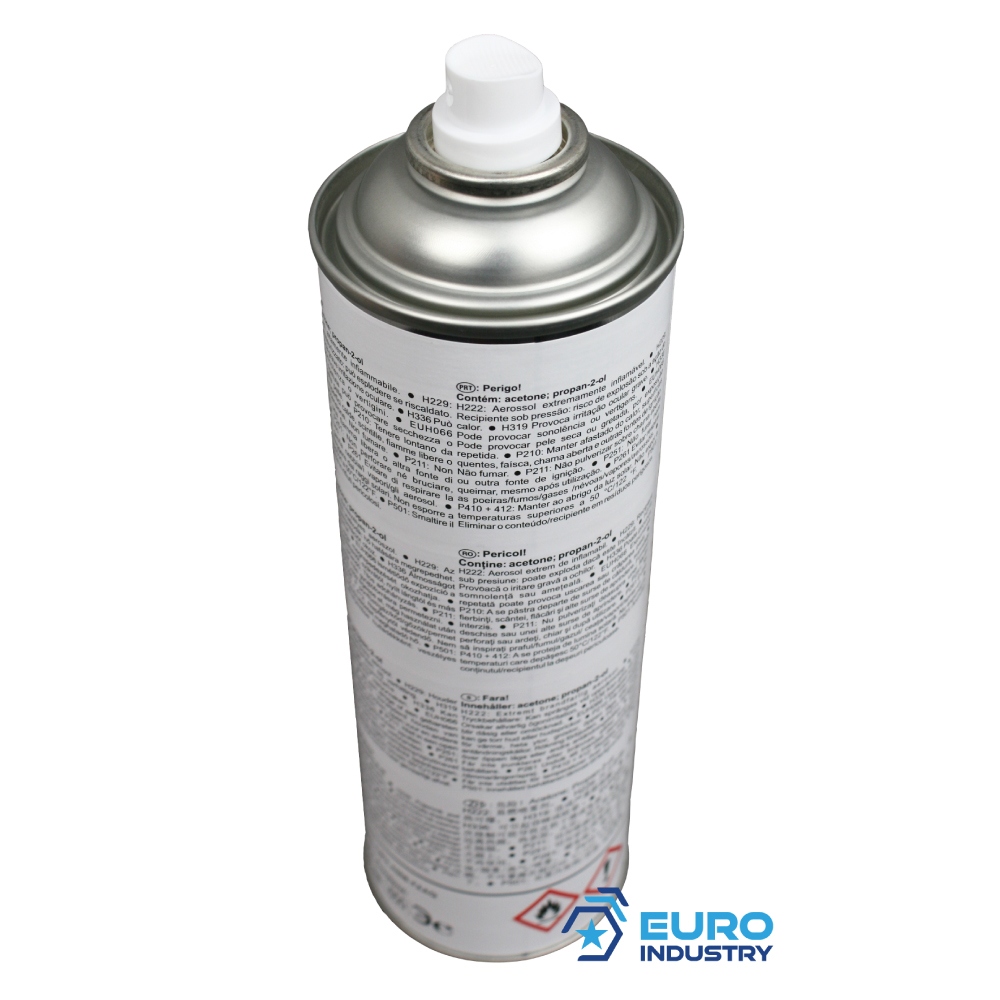

KD-CHECK SD-1 Wet developer for crack detection ISO 3452-2 500ml Spray

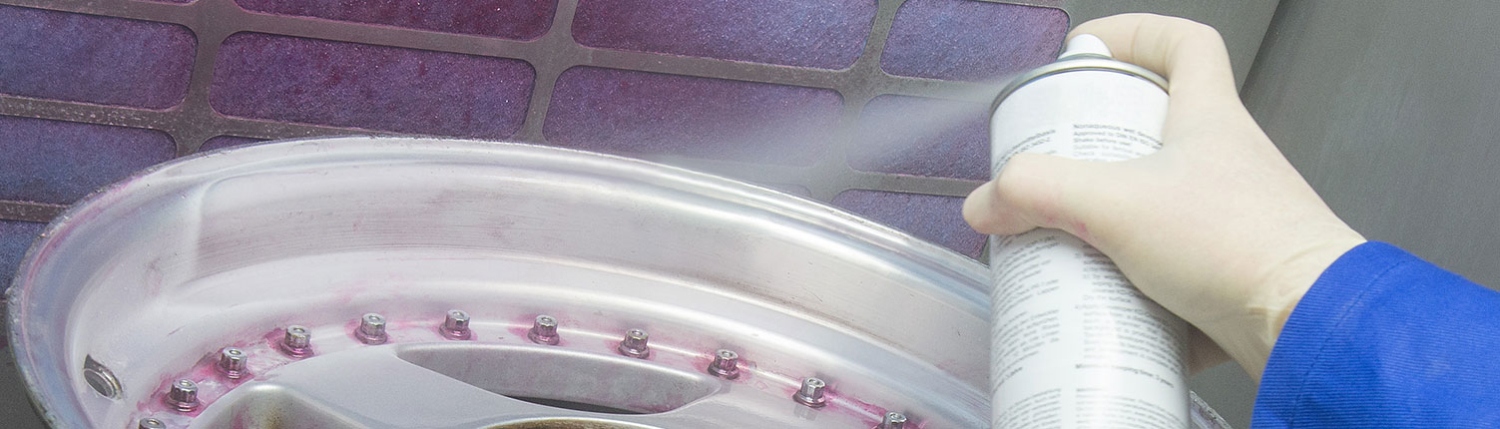

Karl Deutsch KD-CHECK SD-1 solvent-based wet developer spray is used for any test equipment system for non-destructive testing of surface cracks and pores using the dye penetration test method.ApplicationFor crack detection on almost all metallic and non-metallic material surfaces, e.g. steel, plastic, aluminum, brass (suitability for plastics must be checked beforehand)Crack detection system approved to DIN EN ISO 3452 in accordance with TRGS 614After intermediate cleaning () and drying, a thin film of white wet developer is appliedAfter a processing time (5 – 10 minutes) the dye penetrant (e.g. ) is drawn out and becomes visible as a red traceCharacteristicsSolvent-based wet developerDeveloper for form d and eBasis: alcohol/acetoneApplication by spray can and electrostatic sprayingFast dryingForms a fine and uniform developer layerExcellent contrast of background and crack indicationEasy to remove from test surfacesLow sulfur and halogen content according to DIN EN ISO 3452-2 and ASME Code, Section V, Article 6Can be used in a temperature range from -30 °C to +50 °CType-tested according to DIN EN ISO 3452-2 and -6, approved according to AREVA NP TLV 9017Listed on QPL-AMS 2644Size: 500mlPackaging type: aerosol sprayHazard Warnings (CLP)Signal word: DangerHazard Statements (H-phrases)H222: Extremely flammable aerosol.H229: Pressurised container: May burst if heated.H319: Causes serious eye irritation.H336: May cause drowsiness or dizziness.Supplemental Hazard InformationEUH066: Repeated exposure may cause skin dryness or cracking.Safety Statements (P-phrases)Prevention:P210: Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.P211: Do not spray on an open flame or other ignition source.P251: Do not pierce or burn, even after use.P261: Avoid breathing dust/fume/gas/mist/vapours/spray.Storage:P410+P412: Protect from sunlight. Do not expose to temperatures exceeding 50 °C/122 °F.Disposal:P501: Dispose of contents/container to hazardous waste.Other HazardsNo data available.×Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,  Information on product safety (Manufacturer, Contact)KARL DEUTSCH Prüf- und Messgerätebau GmbH + Co KG, Otto-Hausmann-Ring 101, 42115 Wuppertal, GERMANY, +49 202 7192 0, , www.karldeutsch.de
