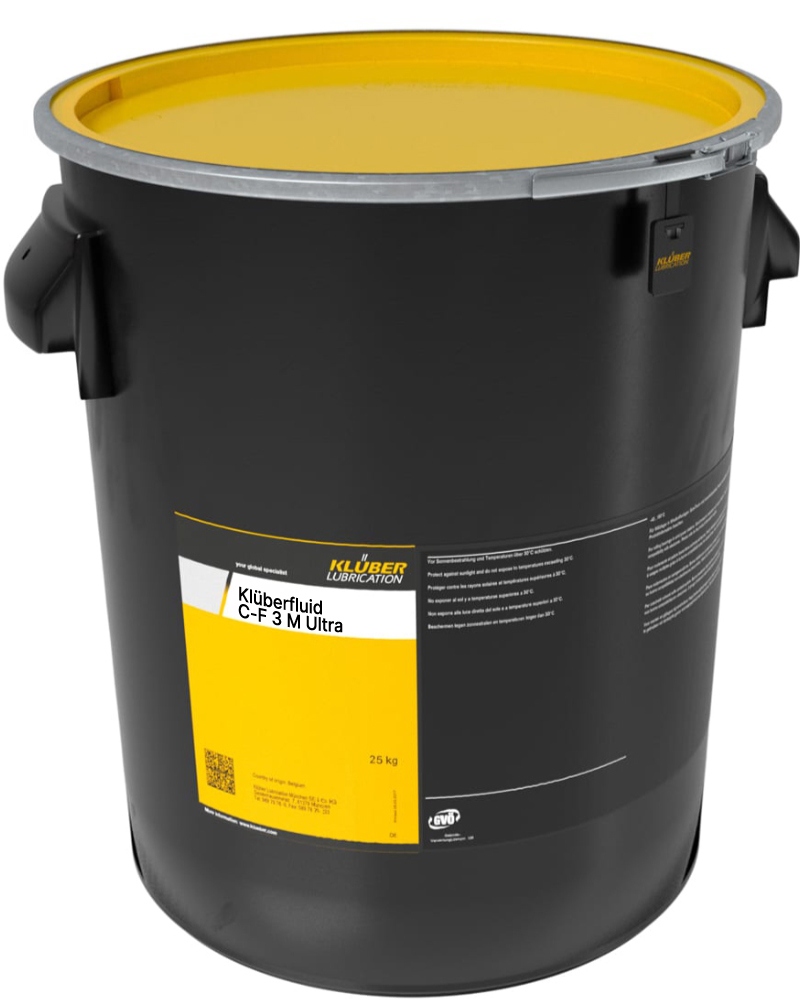

Klüberfluid C-F 3 M Ultra Lubricant for large girth gear drives 25kg

Klüberfluid C-F 3 M Ultra Operational lubricant for large girth gear drives | N° 039088Klüberfluid C-F 3 M ULTRA is a newly developed transparent adhesive lubricant especially for the lubrication of medium-size to large girth gear drives. It is based on a mixture of synthetic hydrocarbons and mineral oil.Klüberfluid C-F 3 M ULTRA provides extremely good adhesion, resistance to high pressure and exceptional wear protection. It is suitable for use at component temperatures up to 120 °C.Klüberfluid C-F 3 M ULTRA is free from bitumen, solvents, heavy metals, chlorine and solid lubricants. Klüberfluid C-F 3 M ULTRA corresponds to ANSI/AGMA 9005-E02 annex D-2.Volume: 25 kg bucketAlso available in: 180 kg barrelBenefits for your applicationOperational lubricant for open drives; spray or manual applicationFor elevated component and ambient temperaturesFree from heavy metals, chlorine, solvents, bitumen and solidsVery good adhesionEasy applicationOptimum wear and tooth flank protectionLow maintenance, lower disposal costsLight-colored, transparent productApplicationsKlüberfluid C-F 3 M ULTRA is primarily used for the lubrication of rather large gear-rim/pinion drives. It can be used with all gear sizesand power ratings. A peripheral speed of 12 m/s should however not be exceeded.Klüberfluid C-F 3 M ULTRA was especially developed for ships and the offshore sector, where most of such drives are found. However, application is also in other industriesApplication notesKlüberfluid C-F 3 M ULTRA can be applied to the tooth flanks by means of spray lubrication systems working with container or barrel pumps. For pumping, the lubricant temperature should be > 25 °C. Klüberfluid C-F 3 M ULTRA can also be applied by brush or spatula. The lubricant film on the tooth flanks can be made visible by using a UV lamp of at least 366 nm.Technical specifications Manufacturer number 0390880177 Colour space brown Texture  homogeneous Application, in automatic spray systems  25 – 100 °C Functional lubricant film  approx. 0 °C Thermal stability of the lubricating film, depends on the relubrication  ≤ 120 °C Density, DIN 51757, 20°C approx. 0.95 g/cm³ Flash point, DIN EN ISO 2592, Cleveland open cup  ≥ 200 °C Kinematic viscosity, DIN EN ISO 3104 / DIN 51562-1 / ASTM D445 / ASTM D7042, 100°C  approx. 750 mm²/s Kinematic viscosity, DIN EN ISO 3104 / DIN 51562-1 / ASTM D445 / ASTM D7042, 40°C approx. 25500 mm²/s Viscosity index, DIN ISO 2909 approx. 185 Pour point, DIN ISO 3016 ≤ 10 °CKlüberfluid C-F 3M Ultra, Klüberfluid C-F3M Ultra, Klüberfluid CF 3M Ultra Information on product safety (Manufacturer, Contact)KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, , www.klueber.com
