Perma STAR CONTROL Gen 2.0 Drive for precise automated lubrication

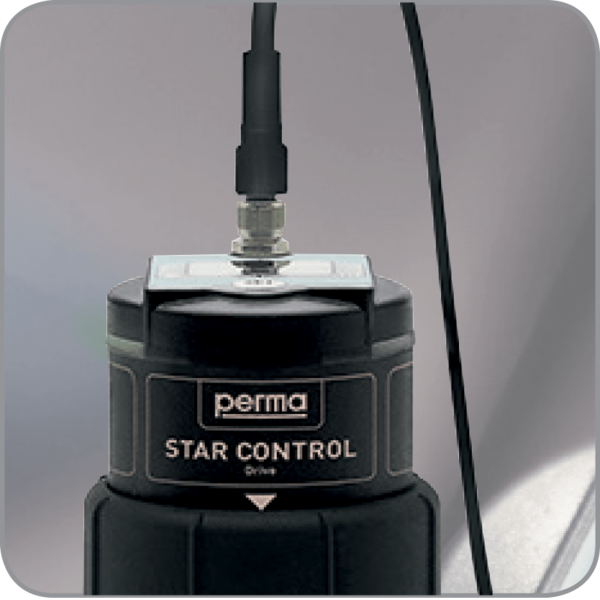

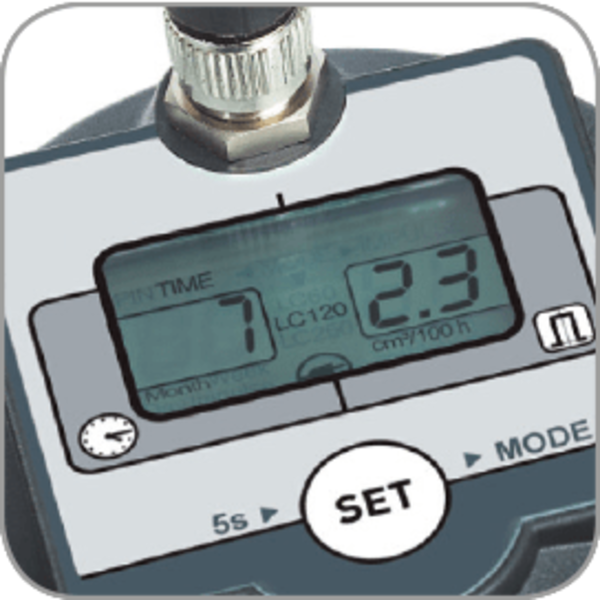

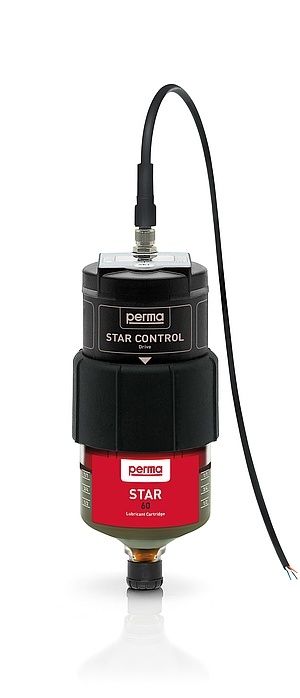

Perma STAR CONTROL Gen. 2 – Enables automated and highly precise lubrication up to a distance of 5 m | N° 108985 The perma STAR CONTROL is supplied with external power via cable. The operating status can be transmitted to a PLC and evaluated.The two integrated operating modes TIME and IMPULSE offer flexible use. In TIME mode, lubricant discharge is based on operating hours. In IMPULSE mode, a precisely defined quantity is dispensed as soon as voltage is supplied.The perma STAR CONTROL consists of an electromechanical drive and an LC with 60, 120, 250 or 500 cm³ of lubricant. The required mode is set on the drive. Lubrication is precise and temperature-independent at a counter pressure up to 6 bar.CharacteristicsFlexible handling via simple setting of TIME or IMPULSE mode; can be changed at any timeFast, simple control of settings, remaining impulses or operating hours until exchangeFreely selectable PIN protects against possible tamperingReliable, precise lubricant discharge independent of temperature and counter pressureQuick function control due to visual or electronic signals on the lubrication system and plant error reporting system saves time and relieves maintenance workersMounting up to 5 m outside of dangerous areas or at easy-to-access locations increases workplace safetyHigher equipment availability since LC can be easily exchanged during running operationLubrication point can be purged to clear blockagesField of applicationperma STAR CONTROL is used to lubricate roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains.Due to the precise lubricant metering, perma STAR CONTROL is ideally suited for lubrication of electric motors with specified lubricant quantities.The system is protected against dust and water jets, subject to correct assembly of the individual parts (IP65).Technical specificationsDrive: ElectromechanicalPower supply: External: 9 – 30 V DC, I (max) 0,5 ADischarge period: 1, 2, 3, …, 12 months / Impulse controlLubricant volume: 60 cm³, 120 cm³, 250 cm³, 500 cm³Operating temperature: -40 °C to +60 °CPressure build-up: 6 barNumber of outlets: 1Protection class: IP 65Lubricants: Grease up to NLGI 2 / oilMax. tube lengths: 5.00 m​ Information on product safety (Manufacturer, Contact)perma-tec GmbH & Co. KG, Hammelburger Str. 21, 97717 Euerdorf, Deutschland, +49 9704 609-0,
