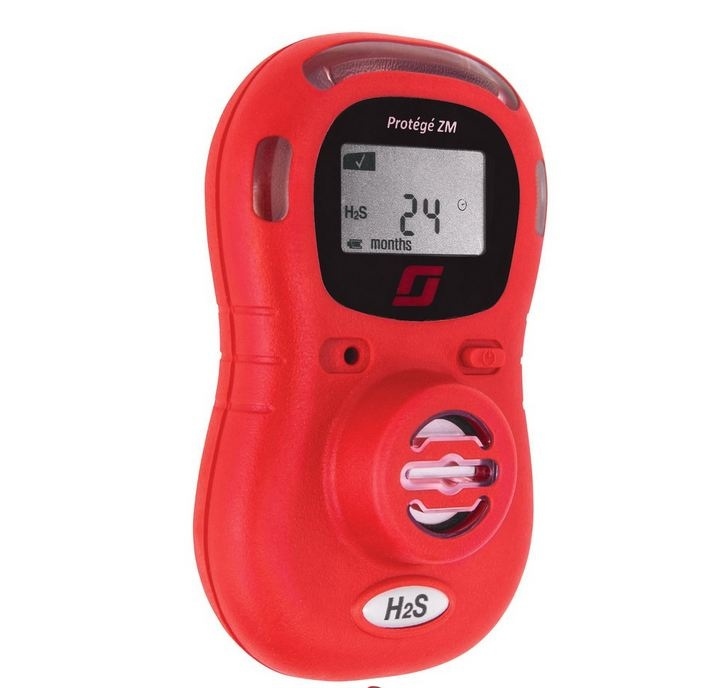

Scott Safety PROTEGE ZM Hydrogen Sulfide Single Gas Monitor H2S

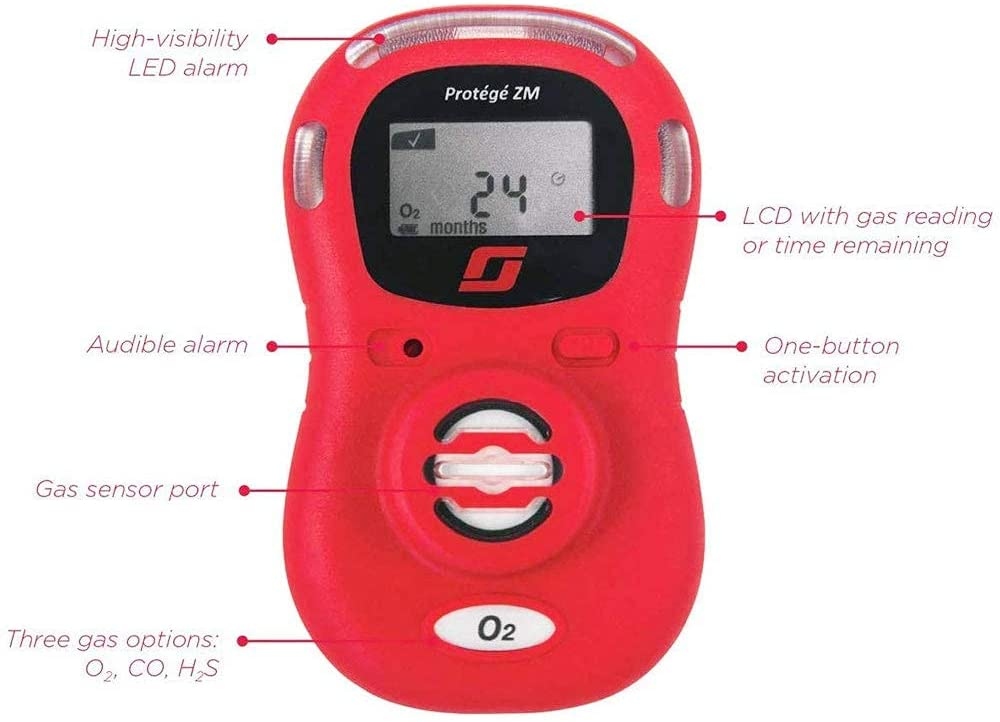

Scott Safety announces the introduction of the Protégé ZM Single Gas Monitor—an easy-to-use, zero-maintenancegas detection solution that delivers high performance in a small, ergonomically designed package.Two Years of Service, Hassle FreeWith one-button activation, adjustable alarm settings and an easy-to-read display the Protégé ZM is simple to use. Just turn it on for the first time, and the monitor does the rest. Using the default settings from the factory there is no need to set up or program the monitor.Once activated, the Protégé ZM monitor does not require charging or calibration so these monitors can be deployed in the field 24 hours a day, every day for two years, maintenance and hassle free. The H2S and CO models include a hibernate feature which allows you to extend your battery life up to one additional year.Big Performance in a Small PackageBecause of its small size and strong, stainless steel alligator clip, the Protégé ZM can be conveniently placed where you want it.The monitor is small, lightweight (76.5g), ergonomically designed and meets IP67 requirements for ingress protection.The unique Protégé profi le fits your hand nicely, making the monitor comfortable to hold. It’s so lightweight and small you will forget you’re wearing it while it protects you.KEY FEATURESUse hibernate mode on the CO and H2S models for up to one year additional operating lifeUser configurable bump and calibration remindersMultiple LCD display options including real-time gas readings, monitor life remaining or bothThree point alarms (audible, visual and tactile)Name or assign monitors using a six-character user IDLCD with gas reading or time remainingTechnical SpecificationPHYSICAL CHARACTERISTICS• Size: 9.40cm H x 5.60cm W x 3.30cm D• Weight: 76.5g• Operation: One-hand operation• Carrying Attachments: Stainless Steel Alligator Clip• Case Material: Impact-absorbant Rubber Overmold• Environmental Protection: IP 66/67 (Third-party Certified)USER INTERFACE• Display Info: Time Remaining (Default) or Gas Reading(Optional) or Both (Optional), Gas Type, Functional TestValidation, Bump Test Due Indicator, Battery LevelMONITORING• Gas Types: CO, H2S, O2• Hibernation Mode Supported: CO, H2S• Sensor Ranges: CO: 1-300 PPM, H2S: 1-100 PPM,O2: 1.0-30.0% VolumePOWER• Power Source: Lithium Ion battery• Battery Life Indication: Yes• Battery Life: 2 Years, Hibernate Mode extends life upto one additional year on CO and H2S modelsALARMS• Visual Alarm: Yes – Red LED• Audible Alarm: Yes – 95db• Vibrating Alarm: Yes• Alarm Set Points: Pre-programmed default settings;Customised factory settings available; Configure usesettings via software and the IR Connect or TestStation accessoriesDATA STORAGE• Data Logging: Logs last 25 events• Data Retention: Yes – backup to PC• Data Transmission: InfraredCERTIFICATIONS• EMC Compliance: CE Marked; EMCEMIRFI Compliant• Explosive Atmospheres: ETL/cETL certification to UL 9137th, CSA C22.2 No. 157 for use in Class I Division 1 & 2,Groups A, B, C and D hazardous areas; IECEx Ex ia IIC T4Ga; ATEX Directive (94/9/EC) ATEX II 1 G Ex ia IIC T4 Ga• Approvals: CE Mark includes both ATEX & EMC testing• Approved Temperature: Ranges -30°C to 50°C (CO)-40°C to 50°C (H2S)ENVIRONMENT• Humidity: 5 – 95% RH non-condensing  Information on product safety (Manufacturer, Contact)3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, , www.3m.com/msds
