VÖLKEL GREEN RING Machine Tap, DIN 371/376 Form B HSS-E – M

10đ

SKU: 23204436
Liên hệ đặt hàng

Liên hệ ngay để có giá tốt nhất

Hotline: 0966068726 (Zalo,Viber)

Chat với chúng tôi

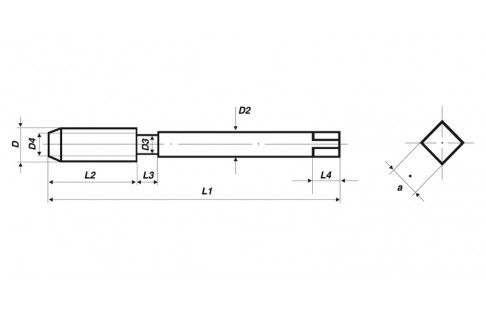

The VOELKEL HSS-E machine taps with green ring are suitablefor non abrasive material up to 1000 N/mm².Technical DataType of thread: Metric ISO-thread DIN 13Standard: DIN 371 / DIN 376Material: HSS-ETolerance: ISO 2 /6HSize: Nominal diameter D M 3 x 0.5 – D M 20 x 2.5Overall length (L1): 56 mm – 140 mmThread length (L2): 11 mm – 34 mmShank diameter (D2): 3.5 mm – 16 mmDrive connector: Square 2.7 mm – 12 mmRecommended applicationNon abrasive material up to 1000 N/mm²Unalloyed and low alloyed steelLong chipping materialFor through holesContents1x GREEN RING Machine Tap, DIN 371/376 Form B HSS-E – M Information on product safety (Manufacturer, Contact)VÖLKEL GmbH, Morsbachtalstrasse 20, 42855 Remscheid, GERMANY, +49 2191 490112, , www.voelkel.com

Thông tin liên hệ

VietNam-Industry guarantees 100% product quality for VÖLKEL GREEN RING Machine Tap, DIN 371/376 Form B HSS-E – M as requested by customers and provides all MSDS, TDS, SDS, Invoices, and Export Declarations for each product. If you would like to purchase this product, please contact VietNam-Industry to receive the earliest quotation — we will support and advise you in choosing the most suitable VÖLKEL GREEN RING Machine Tap, DIN 371/376 Form B HSS-E – M for your needs.
