The VOELKEL HSS-E machine taps with white ring are especially suitable for stainless steel (INOX), long-chipping up to 1000 N/mm² and for chrome-nickel alloys.Technical DataType of thread: Metric ISO-thread DIN 13Standard: DIN 371 / DIN 376Material: HSS-ETolerance: ISO 2 /6HSize: Nominal diameter D M 3 x 0.5 – M 20 x 2.5Overall length (L1): 56 mm – 140 mmThread length (L2): 6 mm – 25 mmShank diameter (D2): 3.5 mm – 16mmDrive connector: Square 2.7 mm – 12 mmRecommended applicationStainless steel, long chipping up to 1000 N/mm²Abrasive materialChrome-nickel alloysFor blind holesVAP-coatingImproved adhesion of the coolant and LubricantReduces tearing of the lubricating filand the formation of cold weldingContents1x WHITE RING machine tap, DIN 371, HSS-E, M Information on product safety (Manufacturer, Contact)VÖLKEL GmbH, Morsbachtalstrasse 20, 42855 Remscheid, GERMANY, +49 2191 490112, , www.voelkel.com

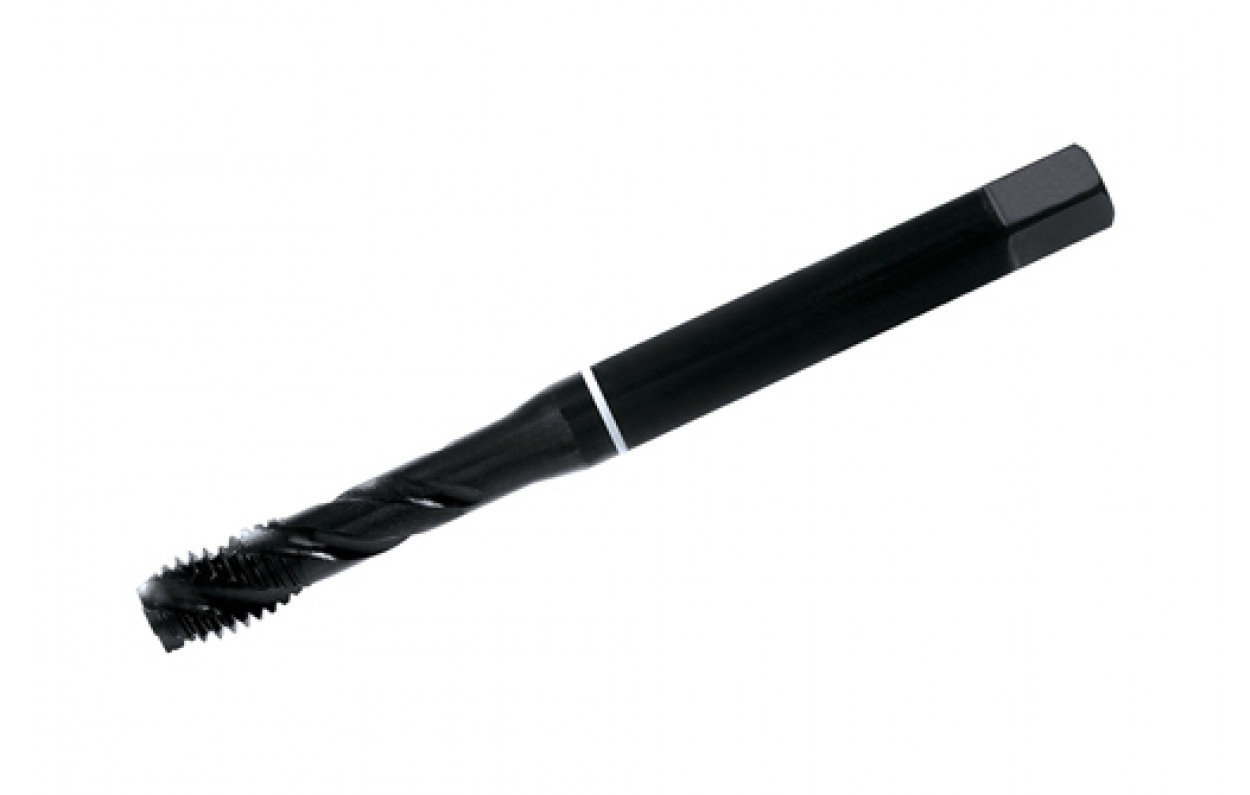

VÖLKELWHITE RING Machine taps DIN 371/376 Form C 39°RSP HSS-E – M
14đ
VÖLKELWHITE RING Machine taps DIN 371/376 Form C 39°RSP HSS-E – M: High-performance HSS-E taps for blind holes in alloyed and stainless steels.
