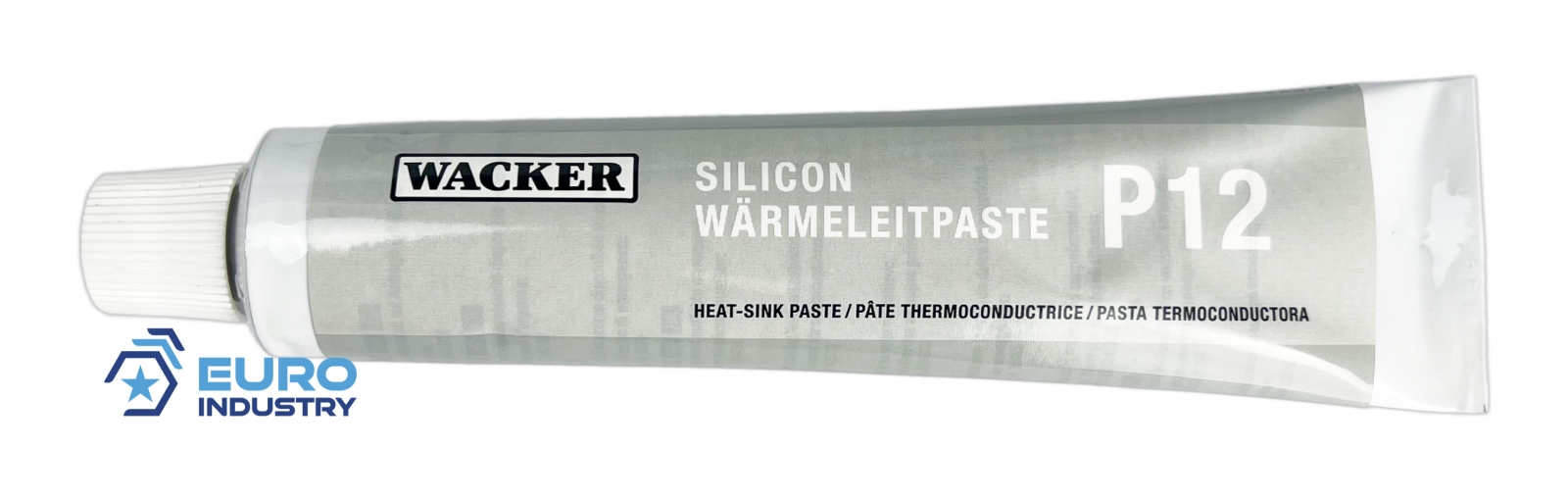

Wacker P12 Heat-sink paste thermal compounds 90g / 90ml

WACKER® PASTE P 12 is a pure white, soft silicone paste with outstanding thermal conductivity and electrical insulation. Designed for use in semiconductor technology, it significantly reduces thermal resistance between semiconductor housings and heat sinks.Pack size: 90 ml tubeAlso available in: , ApplicationsSemiconductor technology: Heat sink paste for diodes, transistors, and thyristorsImproves thermal contact between components and cooling surfacesUniversally applicable at temperatures from -40 °C to +200 °CFeaturesApproximately 20 times more thermally conductive than airTechnical Data Color White Density 2.1 g/cm³ Thermal Conductivity 0.6 – 0.8 W/m.K Dielectric Strength 10 kV/mm Permittivity 3.5 Dissipation Factor 9 x 10⁻³ Operating Temperature Range -40 °C to +200 °C Penetration (unworked) 194 – 238 (1/10 mm) Weight Loss (at 200 °C, 30h) Max. 1.2 %ProcessingWACKER® PASTE P 12 can be applied using a brush, spatula, or by screen printing. Best results are achieved when a uniform, thin layer is applied to the contact surfaces. Excess paste squeezed out during assembly should be removed.StorageThe product should be stored in a cool and dry place. The best-before date for each batch is indicated on the label. Storing beyond this date does not necessarily mean the product is unusable. In such cases, the properties required for the intended use should be checked to ensure quality.WACKER PASTE P-12, WACKER PASTE P12 Information on product safety (Manufacturer, Contact)Wacker Chemie AG, Gisela-Stein-Strasse 1, 81671 München, GERMANY, +49 89 6279-0, , www.wacker.com
